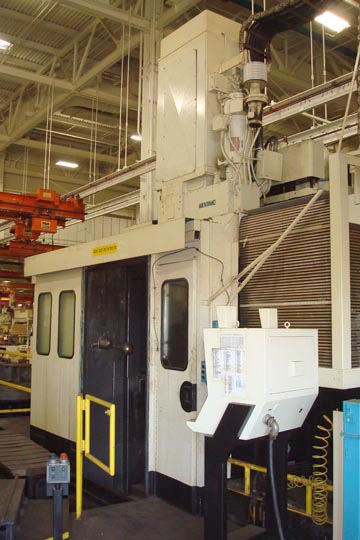

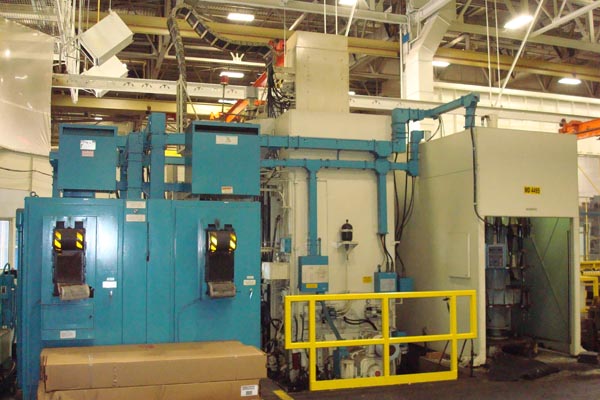

GIDDINGS & LEWIS 48" CNC VERTICAL TURNING CENTER*
Chuck Carrier Pallet Diameter:
48"
Maximum Swing:
58"
Maximum Height Under Rail to Pallet:
73"
Maximum Facing Capacity:
68"
Maximum Vertical Travel of Ram:
54"
Maximum Vertical Travel of Side Head: 60.62" (58" Above
Table)
Vertical Rail Adjustment:
27"
Maximum Horizontal Travel of Ram:
68"
Maximum Horizontal Travel of Side Head:
26"
Feedrates of X-Z Axis: Variable .01-250
IPM
Table Speeds: 3.8 - 125 RPM
High
15 - 483 RPM
Low
Table Drive: 75
HP
EQUIPPED
WITH:
G&L CNC 8000-L
Control
25 HP Live Spindle
Motor
60 Tool Automatic Tool Changer for Cat 60
Ram
24 Tool Automatic Tool Changer for Cat 50 Side
Head
Through the Ram
Coolant

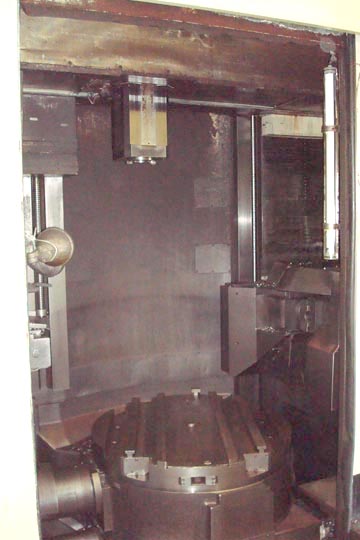

(2) 48" Diameter
Pallets
RS 232
Port
Table
Orientation
Approximate Overall Dimensions: 30" L-R x 204" F-B x 240"
H
Approximate Weight: 100,000 Lbs.
