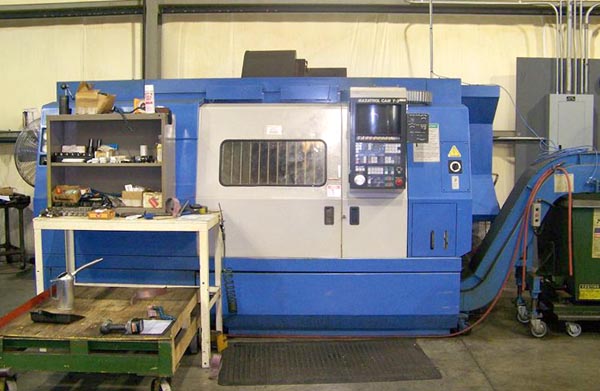

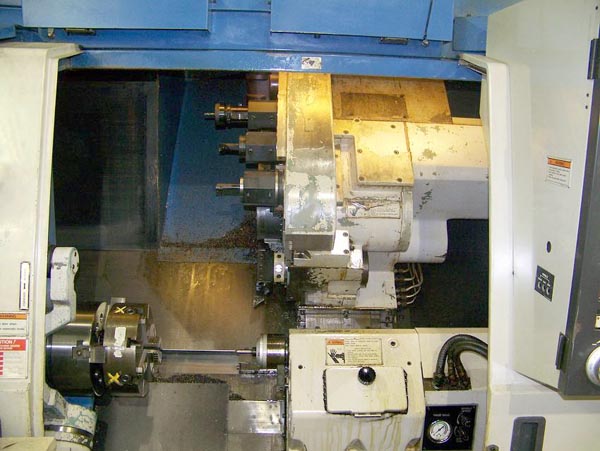

1988 Mazak Slant Turn 28 ATC Mill Center
Stock# K13013
Specifications:
Max.
Swing..........................................................
16.5”
Max.
Machining Diameter....................................
16.5”
Max.
Machining Diameter (Shaft Work).............. 11.8”
Max.
Machining Length.......................................
39.37”
Spindle
Nose.......................................................
A2-6
Spindle
Bore.......................................................
2.2”
Spindle
Speed....................................................
12 – 3,000 RPM

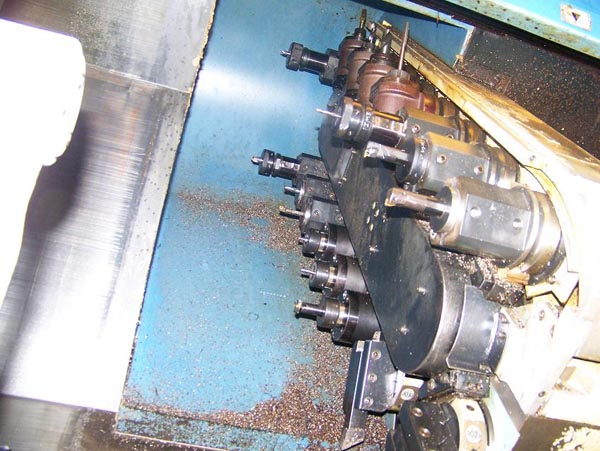

Turret
Type.........................................................
ATC w/ no intermediate arm
Tools...................................................................
16
Rotary Tool Spindle Motor.................................. AC 5
HP
Rotary Tool Spindle Speed................................. 20 –
2,000 RPM
Travel X
Axis......................................................
13.2”
Z
Axis......................................................
40.47”
Rapid Traverse X Axis........................................ 393
IPM
Z
Axis........................................ 590 IPM
Tailstock Quill Dia/Center...................................
3.34”/MT No.4
Tailstock Quill Travel / Body Travel................... 5.12” /
40.47”
Main
Motor (Cont/30 min)...................................
AC26 HP / 26 HP
Power
Requirements..........................................
32.9 kVA
Machine
Weight..................................................
10,340 lbs
Equipped with:

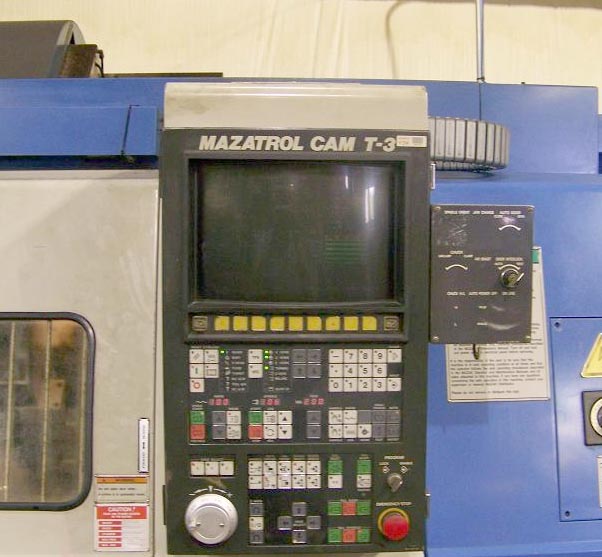

Mazatrol T-3 Control
“C”
Axis
Live
Tooling

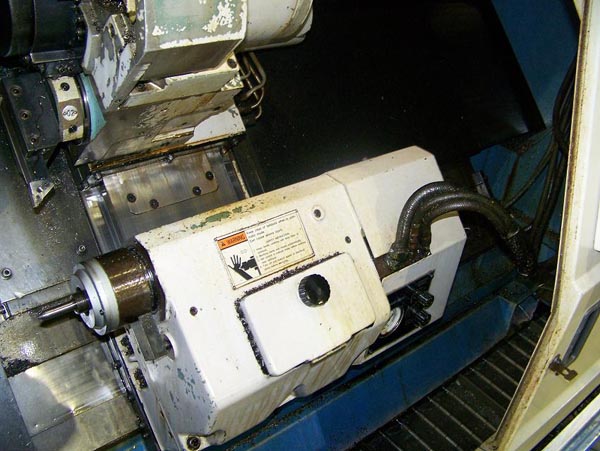

Programmable Tailstock
Chip
Conveyor
Compliment of Toolholders
All
Available Manuals
