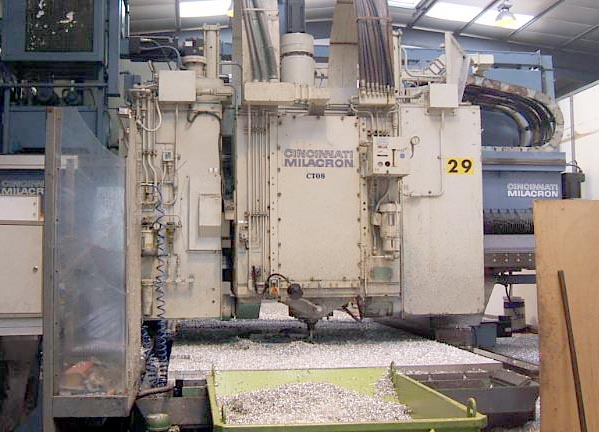

CINCINNATI 5-AXIS SINGLE SPINDLE PROFILER
NEW 1981 Retrofit 1997, Stock# K13014
EQUIPPED WITH:

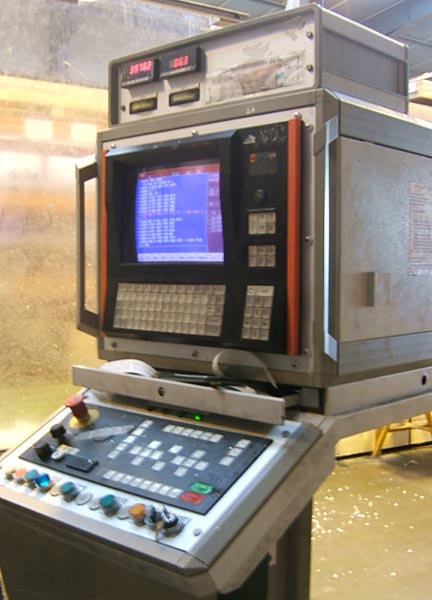

Num 1060
5-axis CNC controlled.
Table 2133.6mm (84”) x 8534.4mm ( 28 feet)
Height over floor: +- 895mm
X = 8534.4mm (28 Feet)
Y = 2235.2mm (88")
Z = 457.2mm (18")
A & B = +20 Degrees to -20 Degrees
Distance table / spindle: min. 127mm (4.9"), max. 584.2mm (22.9")

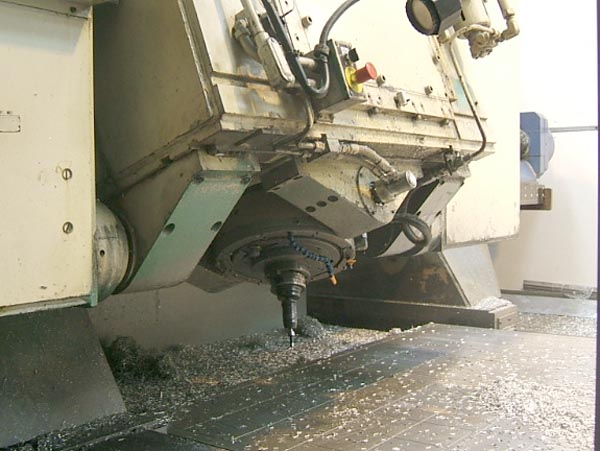

Spindle Taper 50
Machine weight +- 80 tons
The spindle power is 25 KVA (30HP) with ABB Spindle Drive,
speeds = 20 - 3.600 RPM
