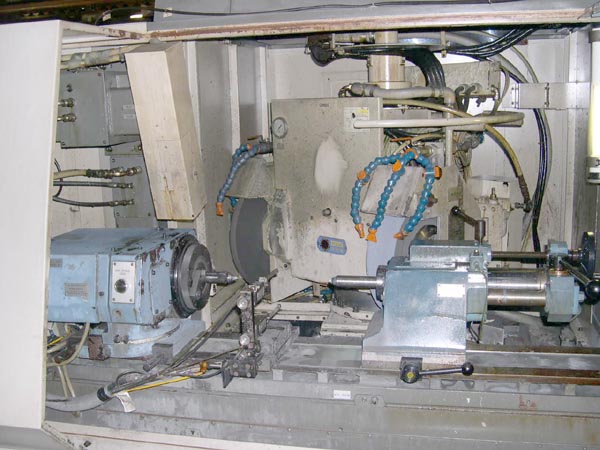

TOYODA GU4-100 CNC UNIVERSAL GRINDER
NEW 1999/2000
EQUIPPED WITH: Three Position Head, Manually Indexable, Air Lift, Five
Degree Minimum Increment Indexing, Curvic Coupling Lock Down
CATALOG SPECIFICATIONS:
13-HEAD DESIGN (ANGLE, STRAIGHT AND INTERNAL GRINDING WHEELS)
BARNES COOLANT SYSTEM GAUGING
Swing Over Table 12.5"
Distance Between Centers 39.4"
Maximum Grinding Diameter 11.8"
Wheel #1 (OD x W) 18" x 1.5"x 5"
Wheel #2 (OD x W) 18" x 3" x 5"
Wheel Surface Speed 8,500 sfpm
Work Speed (variable) 10 - 500 rpm
Wheel Drive Motor 7.5 hp
Work Drive Motor 1.5 hp
Floor Space 163" x 84.5"
Weight 11,440 lbs
