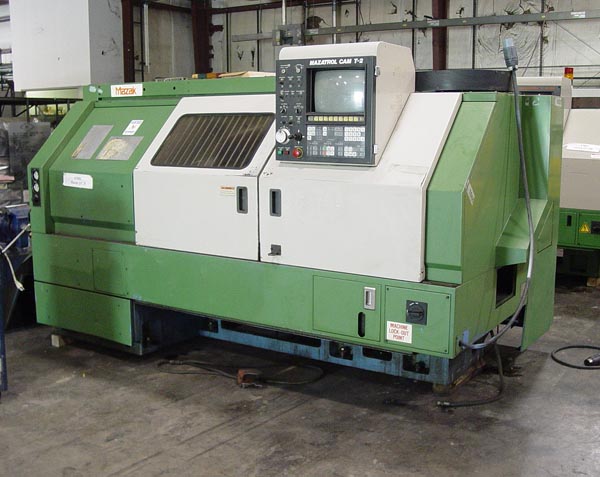

MAZAK QUICK TURN-25 CNC TURNING CENTER
Model QT-25, S/N 106055, New 1988
Stock# K13019
EQUIPPED WITH:
Mazak Mazatrol T-2 CNC Control, Multiple Part Program Storage,
RS-232
Port, Mazatrol Conversational Programming, 10" 3-Jaw Chuck, 12
Position
Tool Turret, Tool Eye Tool Setter, Programmable Tailstock, Chip Pan
and
Coolant System, Tooling Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.8"
Max Swing Over the Cross Slide.......................... 15.75"
Max Tailstock Position.................................. 39.78"
Standard Chuck Size..................................... 10"
Cross Travel (X-Axis)................................... 7.87"
Longitudinal Travel (Z-Axis)............................ 39.78"
Feed Range (Infinitely Variable)........................ .1-394 IPM
Rapid Traverse Rate (X-Axis)............................ 591 IPM
Rapid Traverse Rate (Y-Axis)............................ 591 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.15"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 36-3600 RPM
Spindle Horsepower...................................... 25 HP
Approximate Machine Dimensions.......................... 127" x 82"
Approximate Machine Height.............................. 82"
Approximate Machine Weight.............................. 12000 LBS
CONDITION: Machine Appears to be in Very Good Condition !
