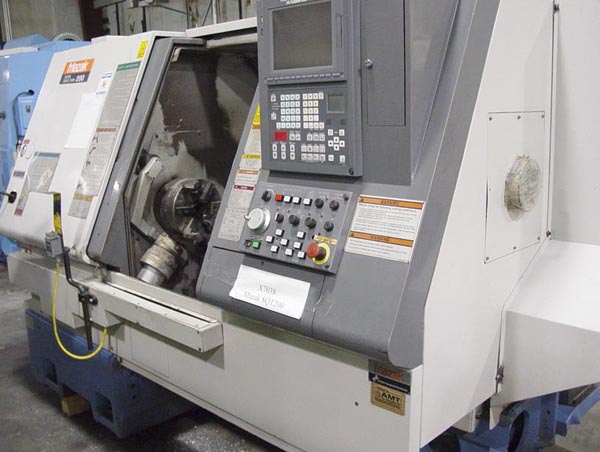

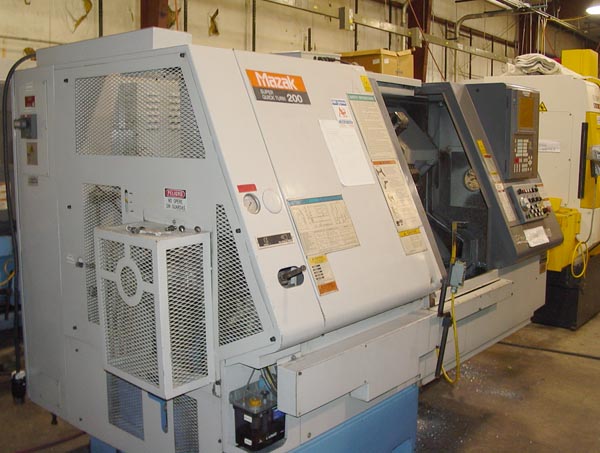

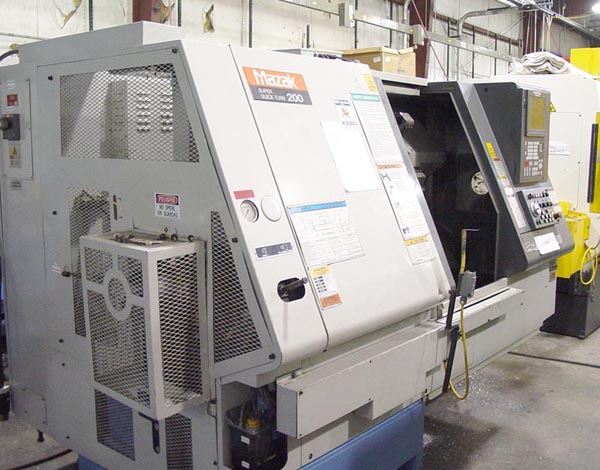

MAZAK SUPER QUICK TURN-200 CNC CHUCKING CENTER
Model SQT-200, S/N 150429, New 2001
Stock# K13022
EQUIPPED WITH:
Mazak Mazatrol Fusion 640T CNC Control, Multiple Part Program
Storage, RS-232 Port, Mazatrol Conversational Programming,
10" 3-Jaw Chuck, 12 Position Tool Turret, Tool Eye Tool
Setter,
Chip Pan and Coolant System, Tooling Package.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.9"
Max Swing Over the Cross Slide..........................
15.74"
Standard Chuck Size..................................... 10"
Cross Travel (X-Axis)................................... 7.87"
Longitudinal Travel (Z-Axis)............................
19.96"
Feed Range (Infinitely Variable)........................
.1-394 IPM
Rapid Traverse Rate (X-Axis)............................ 1180
IPM
Rapid Traverse Rate (Y-Axis)............................ 1180
IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12
Total
Spindle Bore............................................ 2.4"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments)..................
36-5000 RPM
Spindle Horsepower...................................... 25 HP
Approximate Machine Dimensions.......................... 121"
x 62"
Approximate Machine Height.............................. 80"
Approximate Machine Weight.............................. 10300
LBS
CONDITION:This machine is a Chucker and has No Tailstock.
Machine
Appears to be in Very Good Condition !
