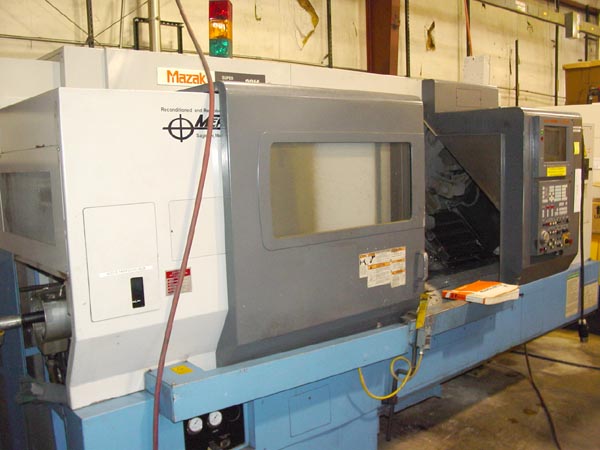

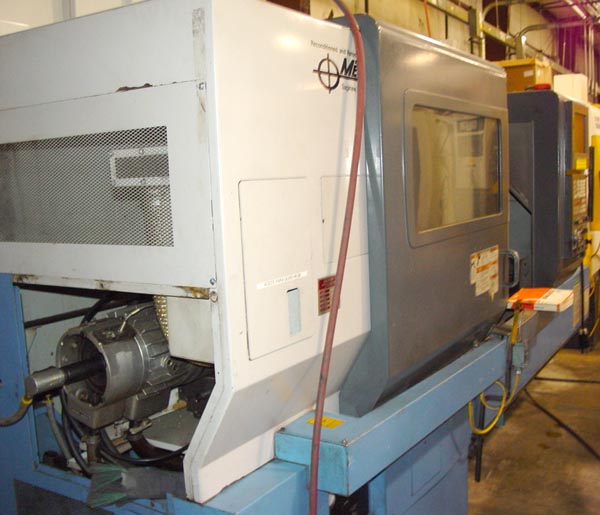

MAZAK SUPER QUICK TURN-28M CNC CHUCKING CENTER w/ LIVE TOOLING
Model SQT-28M, S/N 121650, New 1996
Stock# K13023
EQUIPPED WITH:
Mazak Mazatrol T-Plus CNC Control, Multiple Part Program Storage,
RS-232

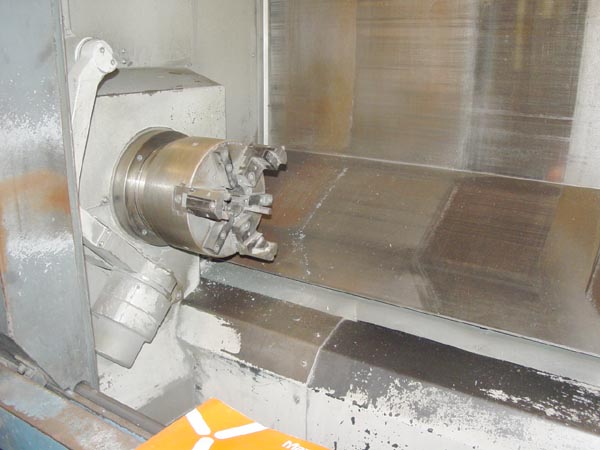

Port, Mazatrol Conversational Programming, Live Tooling, 10" 3-Jaw

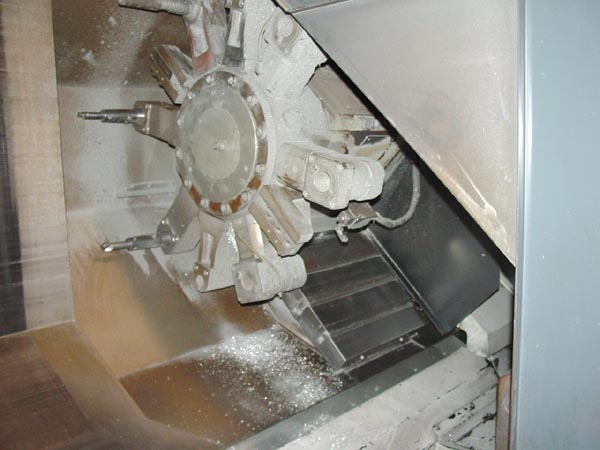

Chuck, 12 Position Tool Turret, Tool Eye Tool Setter, Chip Pan and
Coolant System, Tooling Package with 3 Driven Heads.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 22.04"
Max Swing Over the Cross Slide.......................... 19.68"
Standard Chuck Size..................................... 10"
Cross Travel (X-Axis)................................... 9.65"
Longitudinal Travel (Z-Axis)............................ 40.74"
Feed Range (Infinitely Variable)........................ .1-708
IPM
Rapid Traverse Rate (X-Axis)............................ 945 IPM
Rapid Traverse Rate (Y-Axis)............................ 945 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3.46"
Spindle Nose............................................ A2-8
Spindle Speed Range (1 RPM Increments).................. 36-3500
RPM
Spindle Horsepower...................................... 26 HP
Approximate Machine Dimensions.......................... 160" x
82"
Approximate Machine Height.............................. 102"
Approximate Machine Weight.............................. 13,400
LBS
CONDITION:This machine is a Chucker and has No Tailstock. Machine
Appears to be in Very Good Condition !
