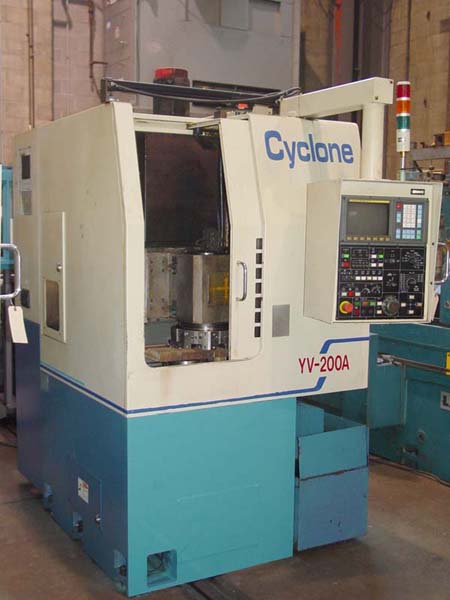

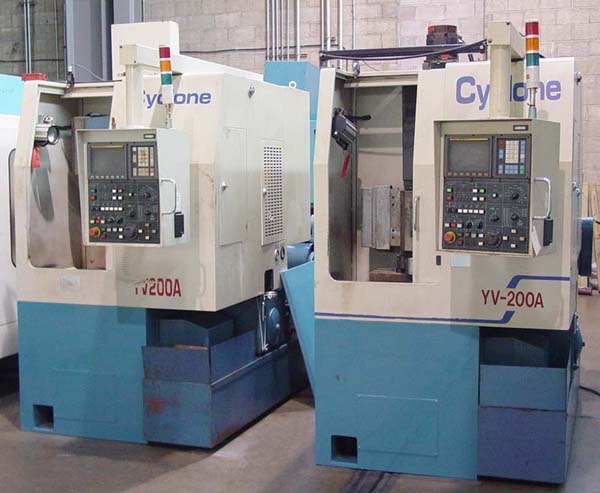

YOU-JI CNC VERTICAL TURNING CENTER
Model YV-200, New 2000, Stock# K13027
EQUIPPED WITH
Fanuc OT CNC Controls, Fanuc Digital AC Spindle and Servo Drives,
High Speed 32-Bit Microprocessor and Bus, 8" 3-Jaw Chuck, 8-Position
Turret, 15HP Spindle, Chip Conveyors, Rigid Box Way Construction, Fast
Bidirectional Turret Indexing, Automatic Lubrication System, Backlash
Compensation, Constant Surface Speed Control, Self Diagnostic Functions,
Spindle Orientation.
CATALOG SPECIFICATIONS:
Max Swing.................................. 15.7" (400mm)
Max. Turning Diameter...................... 8,66" (220mm)
Max. Turning Length........................ 15.7" (400mm)
Spindle Speeds............................. 15-4500 RPM
Travel Distance
X.................................. 11.8" (330mm)
Z.................................. 15.7" (400mm)
Rapid Traverse
X.................................. 472 IPM (12 m/min)
Z.................................. 944 IPM (24 m/min)
Number of Turrets.......................... 1
Type of Turret............................. 8-Station Drum
Tool Index Time............................ .05 Seconds
Approximate Machine Dimensions............. 68" x 54"
Approximate Machine Height................. 96"
Approximate Machine Weight................. 6,600 Lbs (3,000 KG)
CONDITION: Machine Appears to be in Very Good Condition !
Price: F.O.B. Cincinnati Ohio.............. $19,500. Each
