KIA Kit-30 CNC GANG STYLE CNC LATHE
                     Model Kit-30, S/N 101459, New 1996
                               Stock # K13028



EQUIPPED WITH:

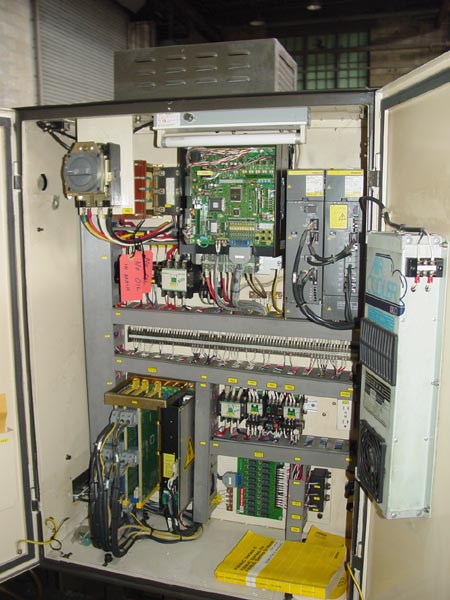

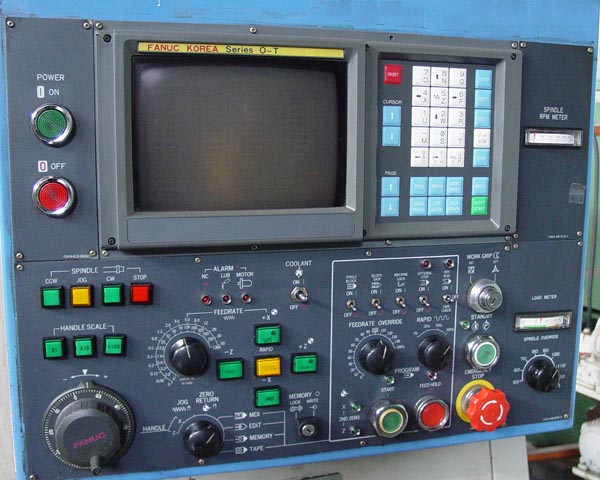

Fanuc 0T CNC Control with CRT, RS232 Port, Thread Cutting, 8 Position

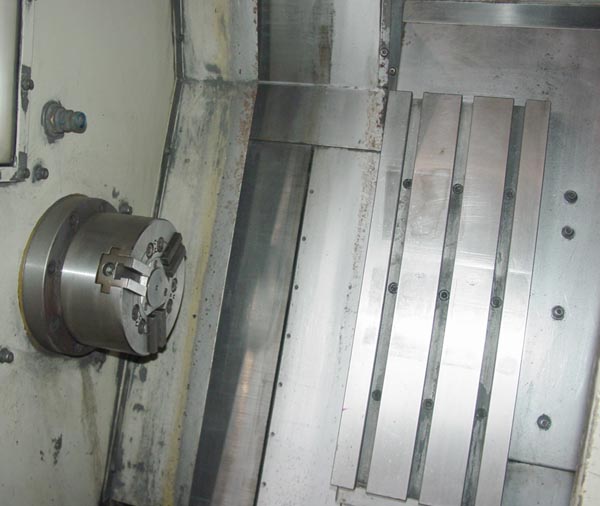

Gang Type tool Slide, 6" 3-Jaw Hydraulic Chuck, Chip Conveyor.



CATALOGUE SPECIFICATIONS:



Max Swing Over Bed...................................... 18.9"
Max Swing Over Cross Slide.............................. 6.69"
Max Part Diameter....................................... 5.9"
Max Part Length......................................... 7.9"
Standard Chuck Size..................................... 6"
Cross Travel (X-Axis)................................... 9.8"
Longitudinal Travel (Z-Axis)............................ 15.7"
Rapid Traverse Rate (X-Axis)............................ 1,181 IPM
Rapid Traverse Rate (Y-Axis)............................ 1,181 IPM
Type of Tool Support.................................... Gang
Gang Positions.......................................... 8
Bar Capacity............................................ 1.5"
Spindle Speed Range (1 RPM Increments).................. 50-5000 RPM
Spindle Horsepower...................................... 7.5 HP
Approximate Machine Dimensions.......................... 84" x 57"
Approximate Machine Height.............................. 66"
Approximate Machine Weight.............................. 6173 LBS



CONDITION:  Machine Appears to be in Very Good Condition !!
