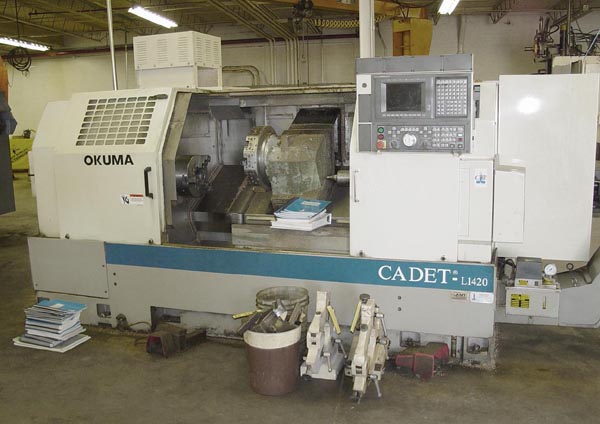

OKUMA CADET-L1420/1250 CNC TURNING CENTER
New 1998, S/N 00449, Stock# K13030
EQUIPPED WITH:
OSP 700L CNC Control, Animation, LAP4, Mac-Man, NoseR-2B, Expanded
Auto Chamfer, RS-232 Port, Floppy Disk Drive, Cycle Time Monitor, 12

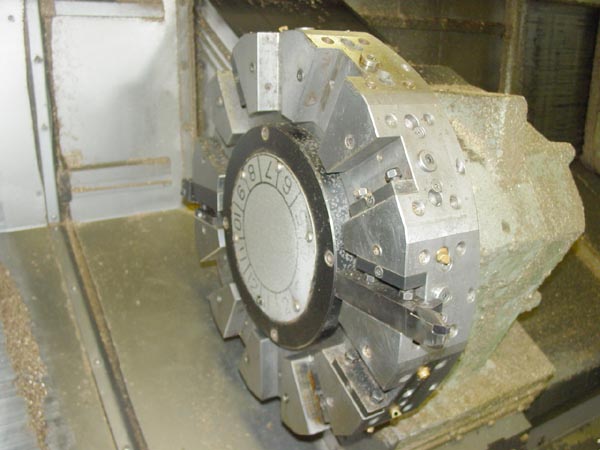

Kitagawa 3-Jaw Hydraulic Chuck, 12 Position Turret, Hydraulic Tailstock
with Programmable Quill, 20mm-180mm Steady Rest, 120mm-200mm Steady
Rest, Multi-Tap Transformer for 220 or 480 Volt, Chip Conveyor and
Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed ..................................... 28"
Max Swing Over Saddle................................... 18.9"
Max Tail Stock Position................................. 48.78"
Spindle Bore............................................ 3.62
Chuck Size.............................................. 12"
Cross Travel (X-Axis)................................... 9.05"
Longitudinal Travel (Z-Axis)............................ 25.59"
Rapid Traverse Rate (X-Axis)............................ 472 IPM
Rapid Traverse Rate (Z-Axis)............................ 591 IPM
Tool Positions.......................................... 12
Spindle Nose ........................................... A2-8
Spindle Speed Range..................................... 52-3500 RPM
Spindle Drive Motor..................................... 30/20 HP
Hydraulic Tailstock Stroke.............................. 4.72"
Hydraulic Tailstock Taper............................... #5 MT
Approximate Machine Dimensions.......................... 135" x 72"
Approximate Machine Weight.............................. 17,500 LBS
CONDITION: Machine Appears to be Excellent Condition !
