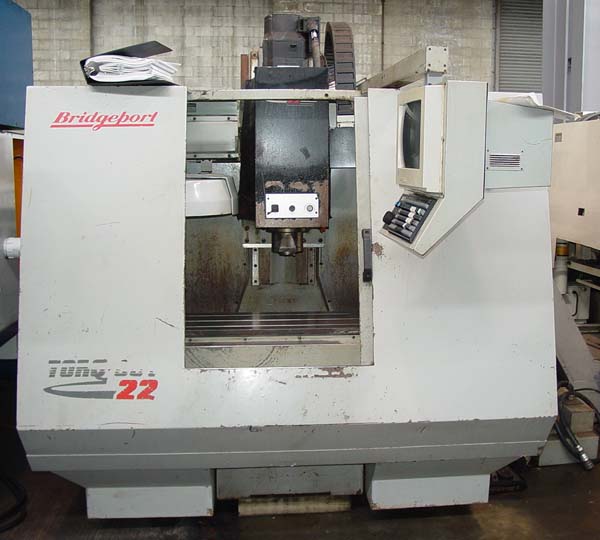

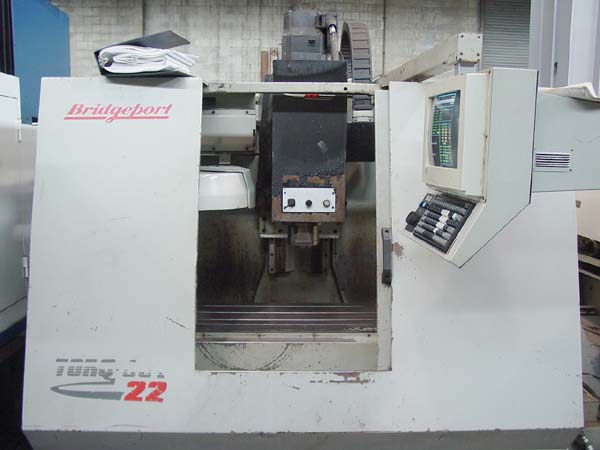

BRIDGEPORT TORQ-CUT 22 CNC VERTICAL MACHINING CENTER
Model TC-22, New 1994, S/N TC-22/276
Stock# K13034
EQUIPPED WITH:

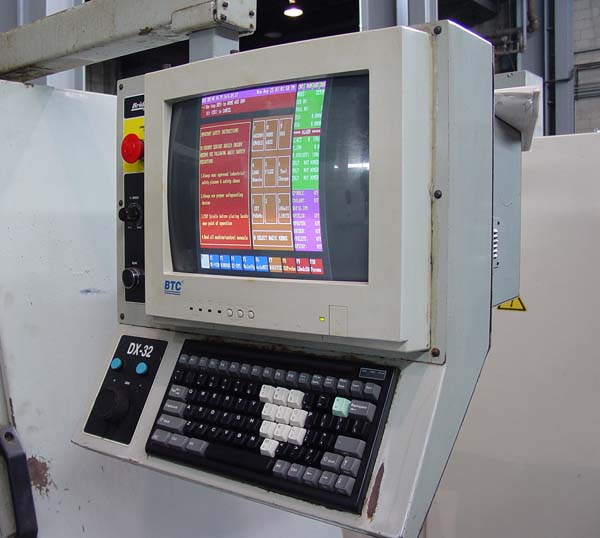

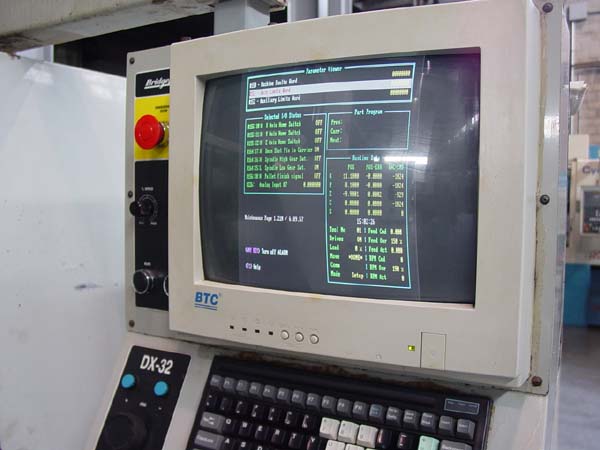

Bridgeport DX-32 PC Based CNC Control, Keyboard, RS-232 Port, 3-1/2"
Floppy Disk Drive, 22 Station Automatic Tool Changer, Full Coolant

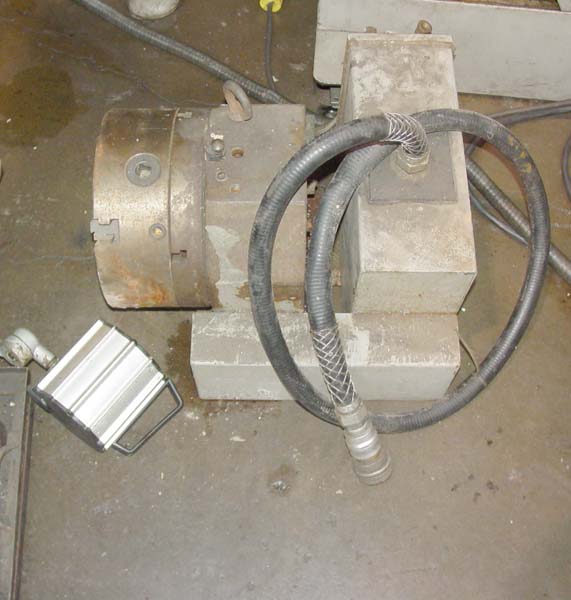

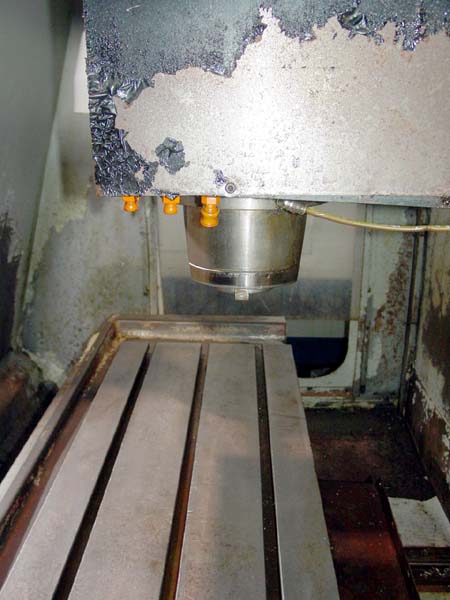

Enclosure, 6,000 RPM Cat-40 Spindle, 8" 4th Axis Rotary Table, Chip and
Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)............................... 22"
Y Travel (Cross)...................................... 16"
Z Travel (Vertical)................................... 20"

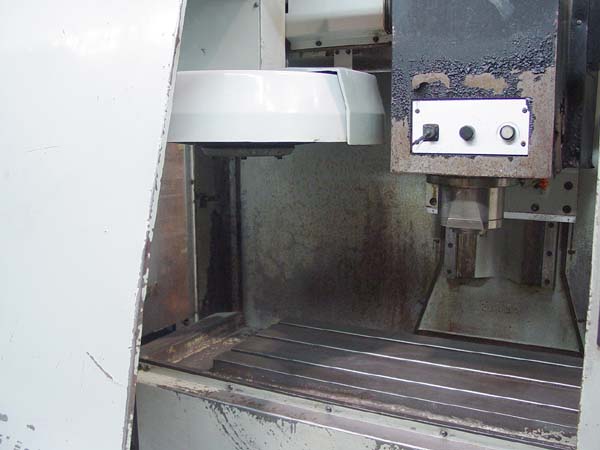

Table Working Surface................................. 33"x 14"
Spindle Nose to Table Min............................. 4.33"
Spindle Nose to Table Max............................. 24.33"
Table Work Load Capacity.............................. 750 LBS
Spindle Horsepower.................................... 7.5 HP
Spindle Speeds........................................ 30-6000 RPM
Spindle Taper......................................... #40 CAT
Feed Rates, X & Y..................................... 0.1 to 472 IPM
Feed Rate, Z.......................................... 0.1 to 472 IPM
Tool Storage Capacity................................. 22
Approximate Dimensions................................ 79" x 87"
Approximate Height.................................... 106"
Approximate Weight.................................... 6,500 LBS
CONDITION: Appears to be in Very Good Condition !
