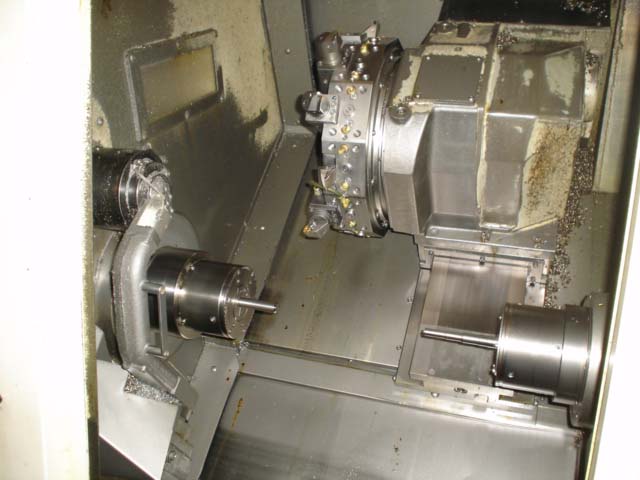

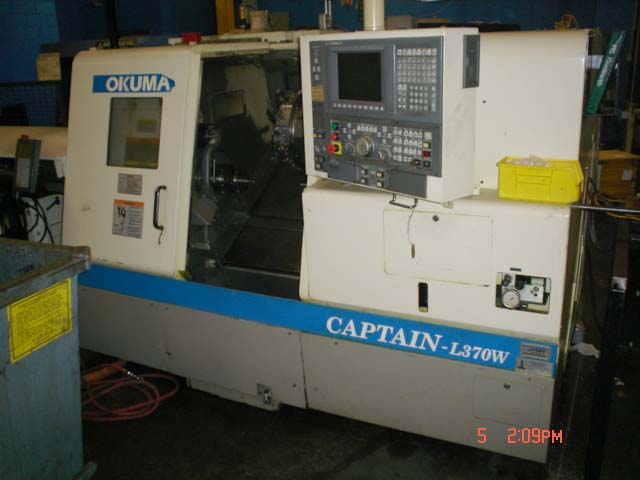

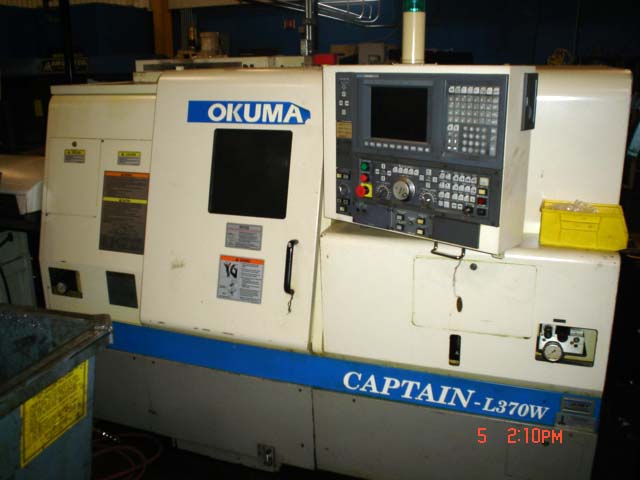

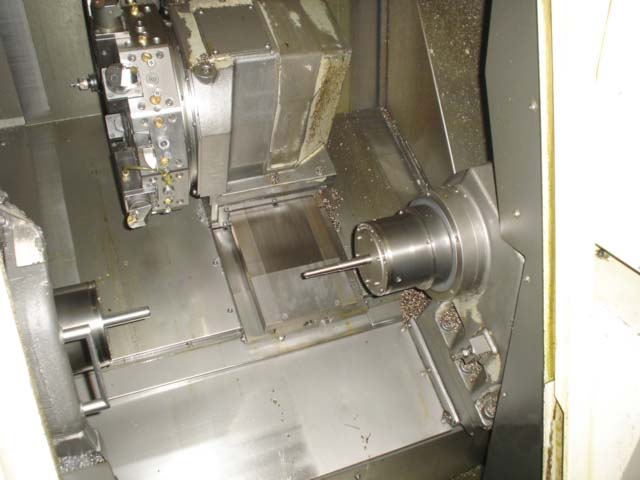

OKUMA CAPTAIN L-370W CNC TURNING CENTER With SUB-SPINDLE
Model L370W, New 2002
Stock# K13037
EQUIPPED WITH:
Okuma E100L CNC Control w/CRT, Power Collet Chuck, Circular

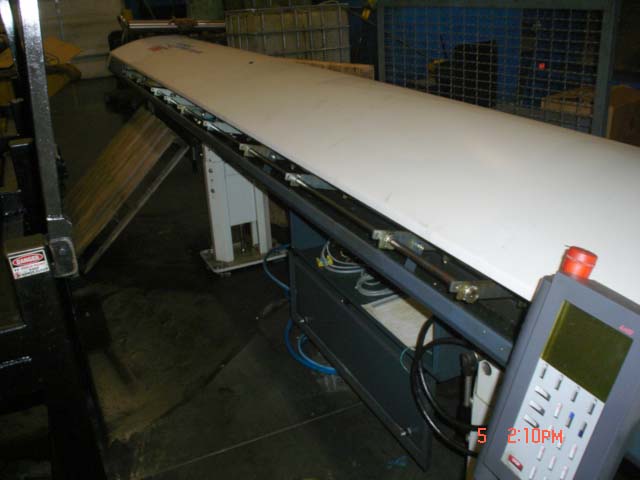

Interpolation, Sub-Spindle, 12 Position Turret, 12' LNS Hydro Bar
Barfeeder, Auto Backlash Compensation, Coolant System, and Chip
Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.08"
Maximum Turning Diameter................................ 14.56"
Maximum Turning Length.................................. 20.47"
Cross Travel (X-Axis)................................... 10.23"
Longitudinal Travel (Z-Axis)............................ 20.47"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 3"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 75-3800 RPM
Spindle Horsepower...................................... 20 HP
Approximate Machine Dimensions.......................... 104" x 73"
Approximate Machine Height.............................. 69"
Approximate Machine Weight.............................. 9,000 LBS
CONDITION: Machine Appears to be in Excellent Condition !!
