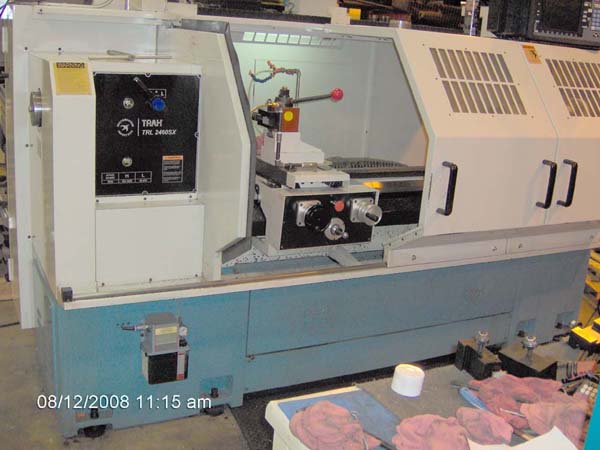

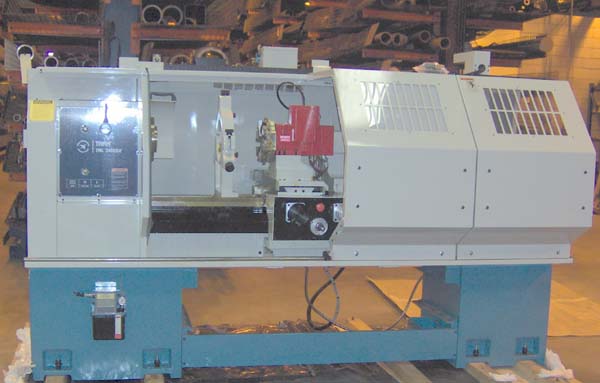

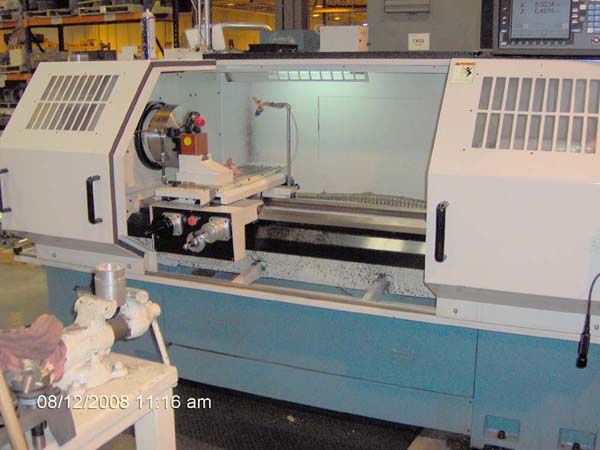

SOUTHWEST INDUSTRIES FLAT BED CNC TURNING CENTER
              Model TRAK 24x60, New 12/2007, Stock# K13045



EQUIPPED WITH:

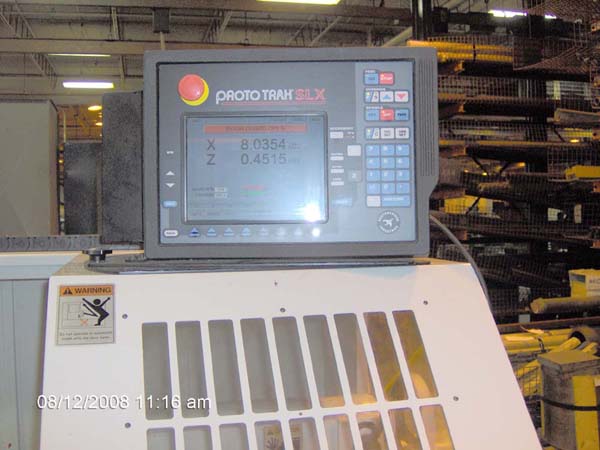

TRAK SLX CNC Control, SLX Advanced Features, Teach Mode,
Tracking, Network Connection, RS-232 Port, 8 Position
Programmable Turret, Remote Stop and Go Switch, 12" 3-Jaw Chuck,
Aloris Style Tool Post, Full Program and Edit at the Control, Heavy Duty
Flat Bed Design, Hardened & Ground Ways, and Coolant System.



CATALOGUE SPECIFICATIONS:



Max Swing Over Bed ..................................... 24"
Max Swing Over Carriage ................................ 14.5"
Max Tailstock Position ................................. 60"
Max Machinable Center Distance ......................... 60"
Cross Travel (X-Axis) .................................. 12.5"
Longitudinal Travel (Z-Axis) ........................... 63
Spindle Bore ........................................... 4.09"
Spindle Nose............................................ D1-8
Spindle Speed Range Low Gear............................ 40-670 RPM
Spindle Speed Range High Gear........................... 100-1800 RPM
Spindle Drive Motor .................................... 15 HP
Electrics .............................................. 220/3/60
Approximate Machine Dimension........................... 112" x 52"
Approximate Machine Weight.............................. 7,000 LBS



Condition: Appears To Be in Like New Condition ! Ran less than 10 Hours !
