KITAMURA MYCENTER HX400i CNC 4-AXIS HORIZONTAL MACHINING CENTER
 Serial No. 42-509                            New 2000

EQUIPPED WITH

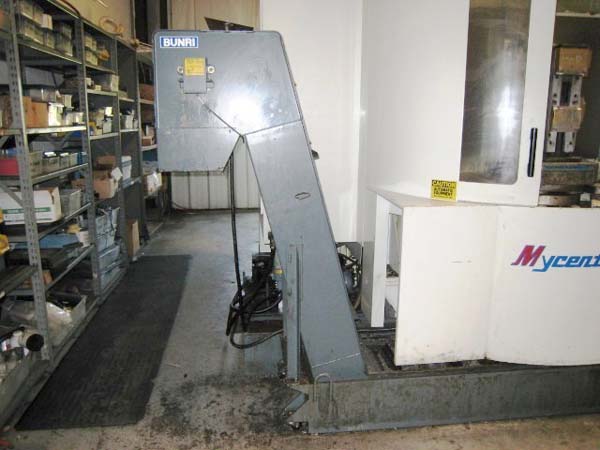

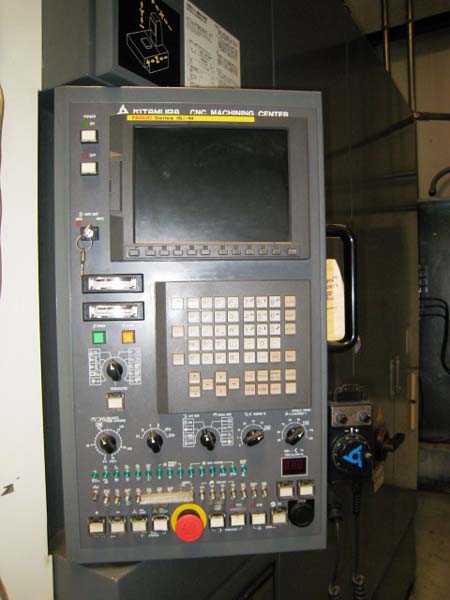

Fanuc 16i CNC Control, Full 4th Axis, Coolant Through Spindle,  Solid Box Ways, (2) Tombstones.  Simultaneous X,Y&Z Strokes, Dual Contact Spindle System To Provide Dual Contact of The Spindle Taper and Flange Face, Special Rubber/Copper Way Wipers, Ballscrew Cooling System. MD Chip Conveyor

SPECIFICATIONS
Table Size                             15.7" x 15.7"
Table Indexing                         0.001" (4th Axis)
Max Work Size                          24" x 37.8"
Table Load Capacity                    880 Lbs
Travels
     X-Axis                            26"
     Y-Axis                            24"
     Z-Axis                            22"
Dist. Table Surface to Spindle Nose    5.9" - 28"
Dist. Table Surface to Spindle Ctr.    1.97" - 26"
Spindle Taper                          BT 40
Spindle Speed                          35 - 13,000 RPM
Rapid Feed (X,Y,Z)                     1968.5 IPM
Cutting Feed                           1968.5 IPM
Tool Storage Capacity                  50 ATC
Tool Selection Method                  Random
Tool To Tool Time                      1 Sec.
Chip To Chip Time                      3.2 Sec.
Max. Tool Weight                       22 Lbs
Approx. Dimensions                     186" x 102" x 122"H
Approx. Weight                         28,600 Lbs
