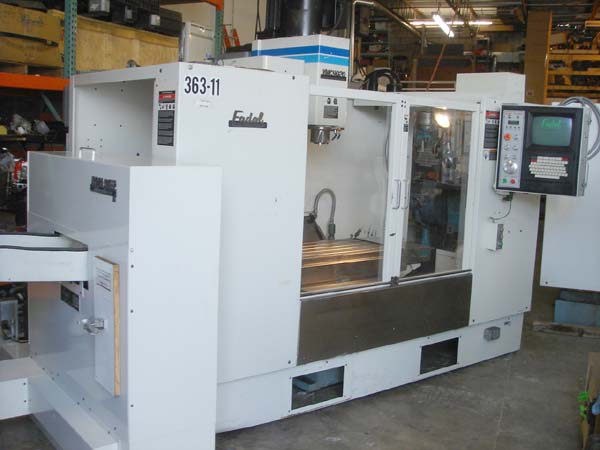

FADAL CNC VERTICAL MACHINING CENTER
Model 4020HT, New 1998
EQUIPPED WITH:
Fadal CNC Control w/CRT, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, Throught Spindle Coolant, Heavy Duty Box Ways,
21 Station Automatic Tool Changer, TS-27 Renishaw Tool Probe
High Torque Spindle, High Performance AC Servos, Glass Scales on XYZ,
Expanded Momory, Rigid Tap, 4th Axis Prewire, Extended Z-Axis, Manual
Pulse Generator, Axis Error Compensation, Cutter Compensation,
Full Enclosure, Hydrosweep Coolant and Chip System.
Table Working Surface................................. 48" x 20"
Table Load Capacity................................... 1,500 LBS
Longitudinal Travel (X-Axis).......................... 40"
Cross Travel (Y-Axis)................................. 20"
Vertical Travel (Z-Axis).............................. 28"
Spindle Nose to Table................................. 4" - 24"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 600 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 75- 10000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 87" x 116"
Approximate Machine Height............................ 95"
Approximate Machine Weight............................ 10,500 LBS
CONDITION: Appears to be in Excellent Condition !
