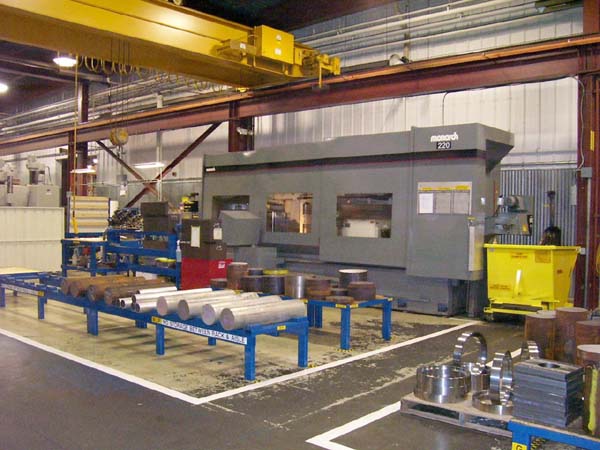

MONARCH SERIES 220 `HEAVY DUTY' UNIVERSAL CNC
TURNING CENTER
Model 220, S/N 54341, New 1997
Stock # K13062
EQUIPPED WITH:
FANUC 15TA CNC Control, Inch/Metric Programmable, Manual
Pulse
Generator, Multiple Repetitive Cycles, Custom Macros,
Expanded Memory,
RS-232 Port, 5-Roller Steady Rest, Heavy Duty Bed
Mounted Tailstock,
75 HP Spindle Option, Backlash Compensation, Hardened &
Ground Box Ways,
24" 3-Jaw Hydraulic Chuck, 12 Position 60 VDI Tool
Turret, Linear
Feedback Scale on X-Axis, Chip Conveyor, Coolant System,
Large Tooling
Package.

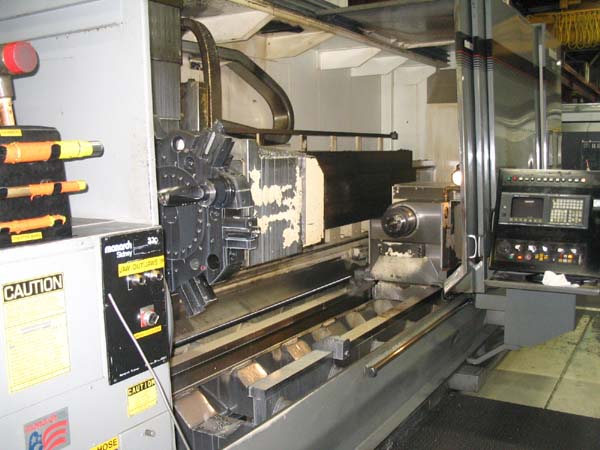

Machine has Separate Ways for the Turret and the Steady
Rest/Tailstock.
This Heavy Duty 4-Way System Allows the Turret to Travel
Past the Steady
Rest and Turn on Both Ends of the Part Without
Repositioning the Rest.
CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed ...........................
36"
Max Swing Over Turret ..................................
22-1/2"
Max Tailstock Position .................................
132"
Max Machinable Center Distance .........................
130"
Cross Travel (X-Axis) ..................................
30"
Longitudinal Travel (Z-Axis) ...........................
143"
Tool Positions (6 ID Turret & 6 OD Turret)..............
12 Total
Spindle Nose ...........................................
A1-15
Spindle Bore ...........................................
7-7/16"
Bar Capacity with Current Chuck Package.................
6.3"
Feed Range (Infinitely Variable) .......................
0-150 IPM
Rapid Traverse Rate ....................................
0-350 IPM
Spindle Speed Range ....................................
28-1270 RPM
Spindle Drive Motor ....................................
75 HP
Tail Stock Diameter ....................................
8-1/4"
Electrics ..............................................
460/3/60
Approximate Machine Dimension...........................
300" x 123"
Approximate Machine Height..............................
114"
Approximate Machine Weight..............................
60,000 LBS
