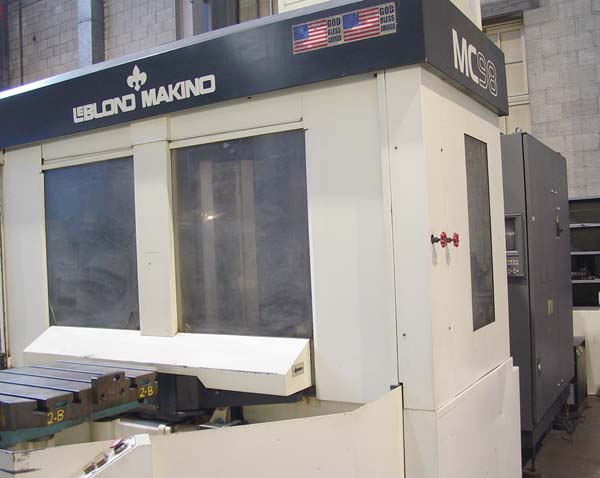

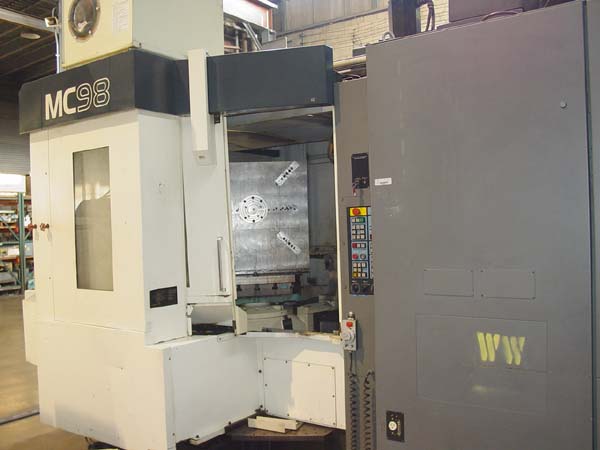

MAKINO MC-98 CNC HORIZONTAL MACHINING CENTER
                        New 1995, S/N 0446, Stock # K13063



EQUIPPED WITH:
Fanuc Professional 3 CNC Control w/Color CRT, Multi-Part Program
Storage, (2) 24.8" x 24.8" Full Contouring 4th Axis Pallets, Heavy Duty
50 Spindle with High Speed Jet-50 15,000 RPM Option, Auto Tool Length
Measurement, Renishaw Part Probe, Helical Interpolation, Coordinate Rotation,
Rigid Tapping, 60 Station Automatic Tool Changer, Chip Conveyor, 1000
PSI Thru Spindle Coolant, Large Tooling Package.



CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 36"
Vertical Travel (Y-Axis) ............................... 31.9"
Spindle Travel (Z-Axis) ................................ 29.5"
Pallet Dimensions ...................................... 24.8"x 24.8"
Maximum Pallet Load .................................... 2860 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... .04-472 IPM
Rapid Traverse, All Axes ............................... 945 IPM
Spindle Horsepower...................................... 25 HP
Spindle Speed Range..................................... 40 - 15000 RPM
Spindle Taper .......................................... #50 BT
Number of Tool Stations ................................ 60
Electrics .............................................. 460/3/60
Approximate Machine Dimensions ......................... 207" x 160"
Approximate Machine Height.............................. 119"
Approximate Machine Weight.............................. 32,000 LBS



CONDITION: Machine is from a Large Well Maintained ISO9002 Shop!
            Appears to be in Excellent Condition !
