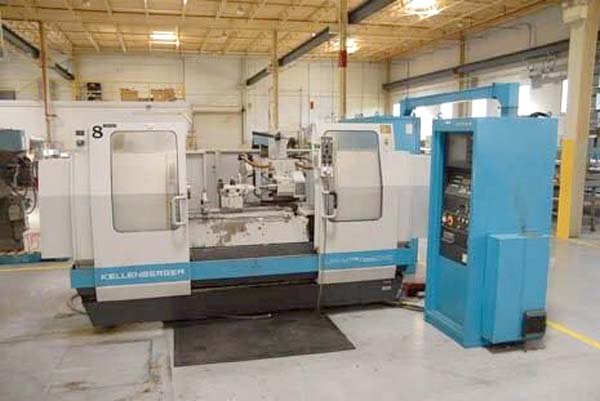

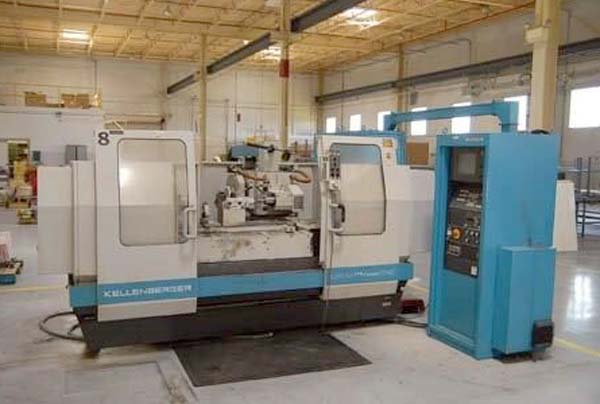

14" x 40" KELLENBERGER CNC UNIVERSAL CYLINDRICAL GRINDER W/INTERNAL ATTACHMENT
New 1993, Serial No 620492, Model UR-M175/1000

EQUIPPED WITH:

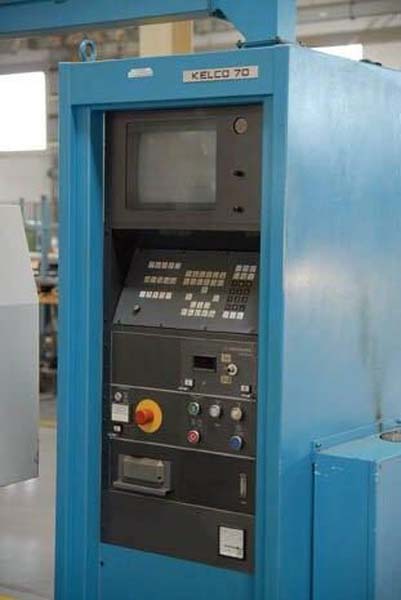

Kellenberger "KELCO 70" CNC Control
Internal Grinding Spindle Attachment

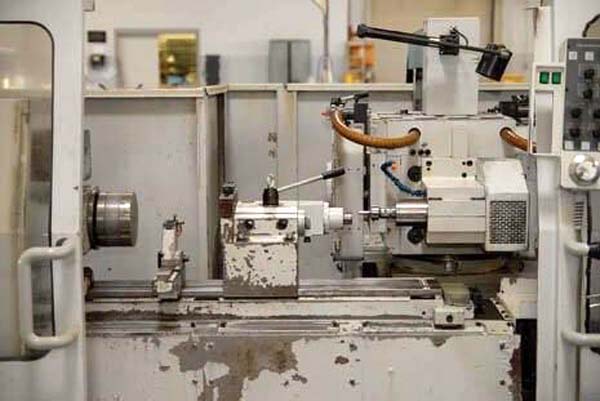

Live And Dead Center Spindle Workhead
Automatic Infeed Acceleration GAP CONTROL
Hydraulic Retraction Of Tailstock Sleeve
Micro-Corrector On Tailstock
Semi-Enclosed Sound Enclosure w/2 Sliding Doors
6" Magnetic Chuck - Coolant System
(4) Extra Internal Spindles

CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum................. 14"
Distance Between Centers, Maximum......... 40"
Weight Capacity Between Centers........... 330 LBS
Grinding Wheel Diameter, Standard......... 16"
Grinding Wheel Width, Standard............ 2.5"
Grinding Wheel Hole Diameter.............. 5"
Grinding Wheelhead Swivel Range........... 270-DEGREES
Workhead Angular Adjustment............... 360-DEGREES
Peripheral Grinding Wheel Speed........... 6500 SFPM
Workhead Spindle Speeds, Range............ 5 to 500 RPM
Grinding Wheelhead Spindle Motor.......... 6 HP
Workhead Spindle Motor.................... 3 HP DC
NOTE: Appears To Be In Very Good Condition w/An
  Original Cost Of Over $277,000.00.
