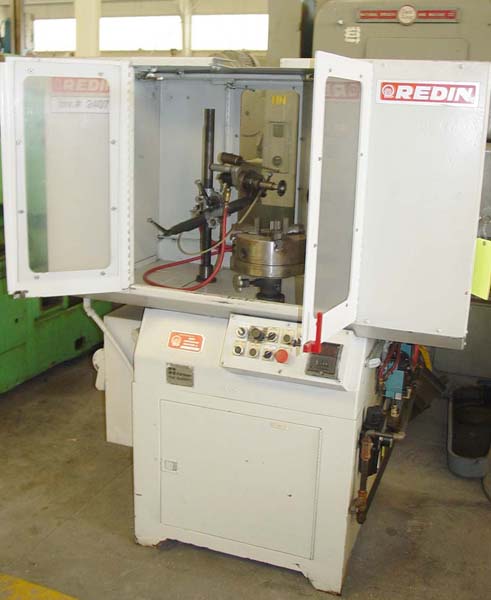

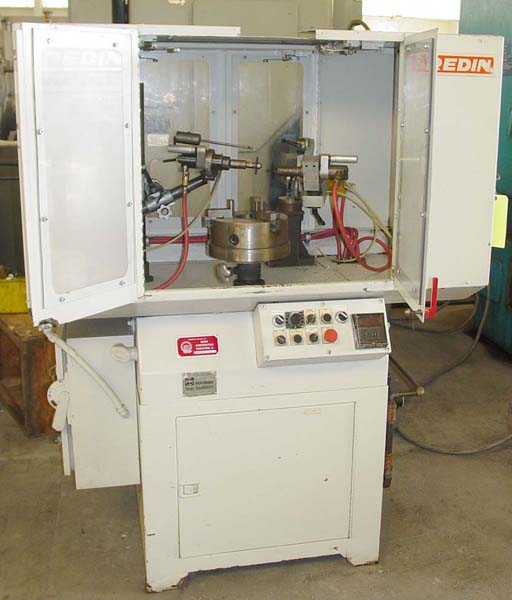

18 REDIN "BURR-MATIC" UNIV GEAR DEBURRING MACHINE
Serial No. 18-183, Model 18

EQUIPMENT / FEATURES:

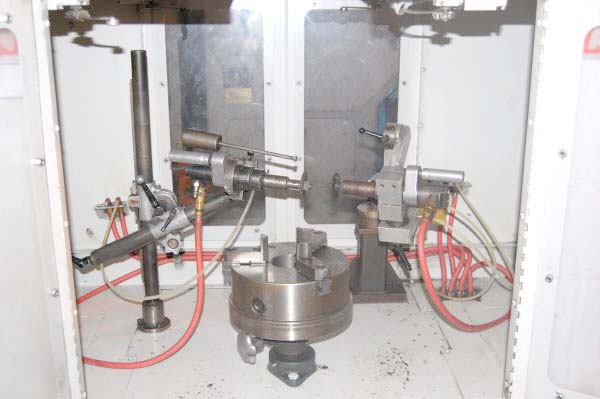

Two (2) Universal Grinding Heads, Complete
  w/Reversible Grinder
Automatic Cycle
3-Jaw Universal Chuck
Cabinet Base w/Full Work Enclosure

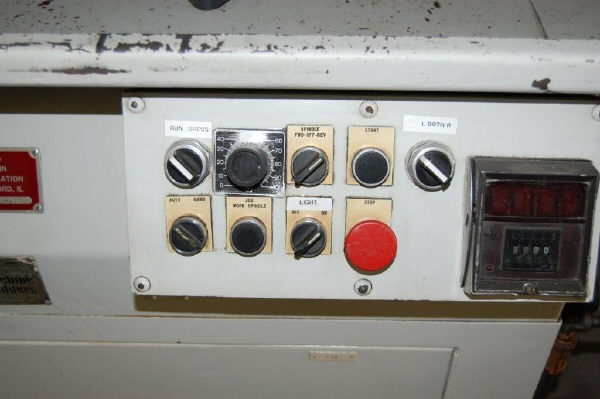

Full Complement Of Electrics (Controls, Pneumatics)
Operator's Manual, Wiring Diagram

PRINCIPAL SPECIFICATIONS:
Maximum O.D............................ 18"/(457.2mm)
Minimum O.D............................ 0"/(0mm)
Maximum I.D............................ 16"/(406.4mm)
Minimum I.D............................ .75"/(19.05mm)
Maximum Face Width..................... 12"/(304.8mm)
Minimum D.P............................ 20 DP/(1.27 Mod)
Maximum Workpiece Weight............... 800 LBS.
Maximum Workpiece Weight............... (360 kGs)
Grinding Wheel Speed................... 13,500 RPM
Grinding Wheel Speed (Full Load)....... 7,000 RPM
Work Spindle Speed..................... .23 To 9.4 RPM
Floor Space............................ 61"x 41"
Floor Space............................ (1651x1041mm)
Approx Net Weight...................... 1,000 LBS.
Approx Net Weight...................... (450 kGs)

NOTES:  Suitable For The Automatic Deburring Of Spur
  & Helical Gears, Straight & Spiral Bevel Gears,
  Sprockets, Worm-Gears, & similar Work-Pieces Up To
  20" (508mm) Diameter & 12"(300mm) Face
