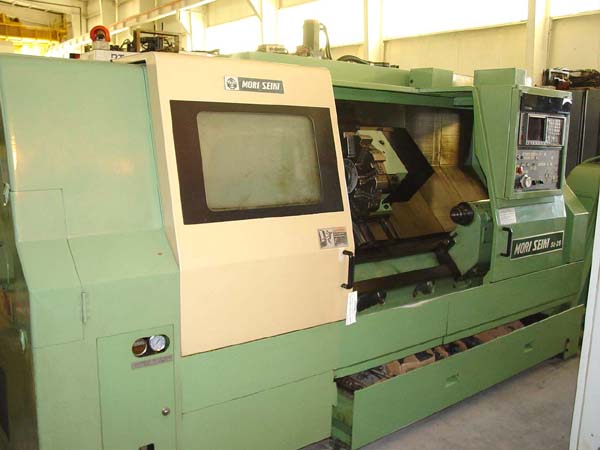

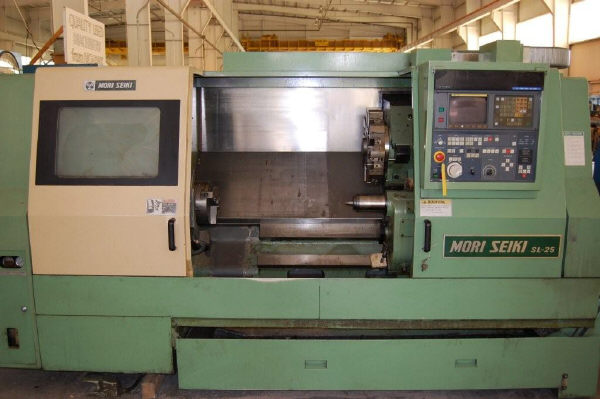

MORI-SEIKI SL25B/1000 CNC SLANT BED TURNING CENTER
New 1990, Serial No. 3987, Model SL25B/1000
EQUIPPED WITH:
Fanuc/Mori-Seiki #MF-T4 CNC Control
Tailstock - 10-Position Turret
Turbo #6288-8076 Chip Conveyor

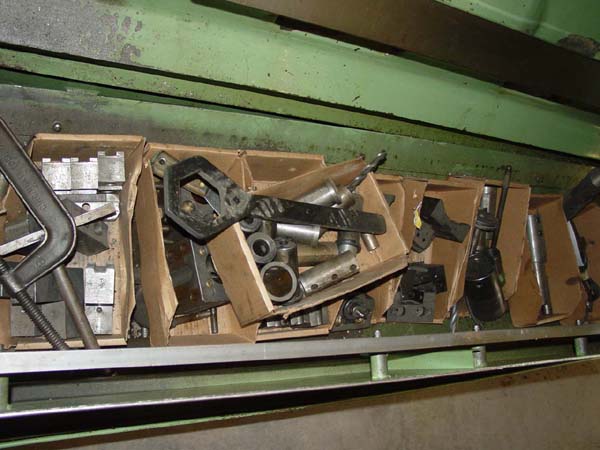

Extra Tool Holders & Chuck Jaws
CATALOGUE SPECIFICATIONS:
Hole thru Spindle...................... 3.1"
Swing Over Bed Ways, Maximum........... 20.47"
Swing Over Cross-Slide................. 13.77"
Distance Between Centers............... 44.29"
Standard Machining Diameter............ 10.23"
Machining Length Between Centers....... 40.55"
Cross Travel (X-Axis).................. 30"
Longitudinal Travel (Z-Axis)........... 42.91"
Spindle Speeds, Range.................. 35 to 3500 RPM
Cutting Feeds, Range................... .000001 to 9.84 IPR
Rapid Traverse, X-Axis................. 473 IPM
Rapid Traverse, Z-Axis................. 590 IPM
Jog Traverse Rate...................... 49 IPM
Tailstock Quill Diameter............... 4.3"
Tailstock Quill Stroke................. 3.93"
Tailstock Taper Diameter............... #4MT
Tailstock Spindle Travel............... 38.97"
Spindle Motor, Horsepower.............. 15 HP
Floor Space Required, L x W............ 11"10" x 5'1"
Overall Height......................... 6'3"
Weight Approximately................... 12100 LBS
\
