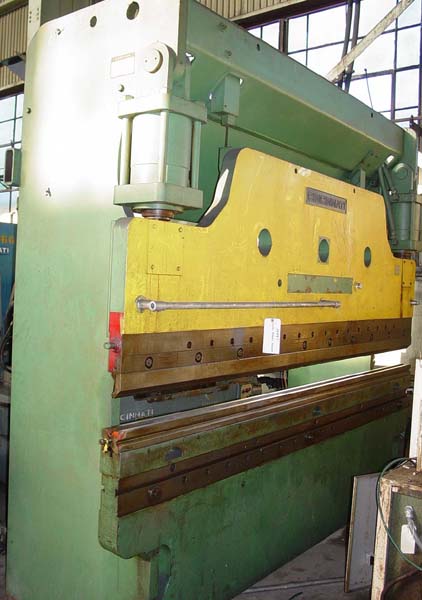

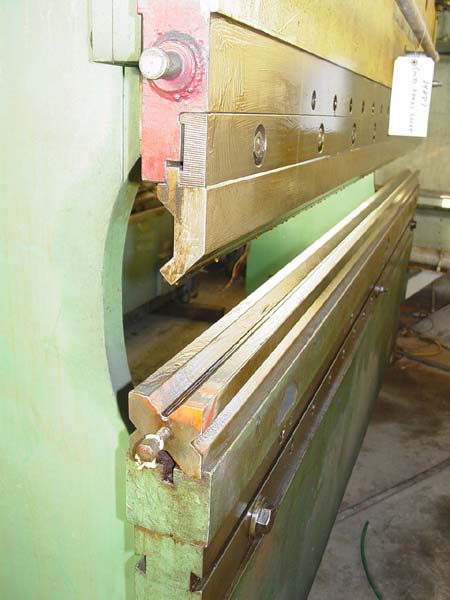

90 TON x 10' CINCINNATI-INC HYDRAULIC PRESS BRAKE
New December 1979, Serial No 41364, Model CB90

EQUIPPED WITH:
Palm Button Operator Station
10' 4-Way Filler Block
Tonnage Control
Waveguard Electronic Stroke Control

CATALOGUE SPECIFICATIONS:
Tonnage Capacity, Medium Or Low Speed.... 90 TON
Tonnage Capacity, High Speed............. 40 TON
Overall Length of Bed and Ram............ 10'
Distance Between Housings................ 8'6"
Bending Capacity......................... 9' x 10 GA
Bending Capacity......................... 6'10' x 3/16"
Bending Capacity......................... 5' x 1/4"
Stroke Length............................ 8"
Open Height.............................. 15"
Closed Height............................ 7"
Throat Depth............................. 7"
Ram Speed, High.......................... 150 IPM
Ram Speed, Medium........................ 71 IPM
Ram Speed, Low........................... 21 IPM
Ram Speed, Return........................ 136 IPM
Hydraulic Motor, Horsepower.............. 15 HP
Overall Height........................... 9'9"
Weight, Approximately.................... 13500 LBS
