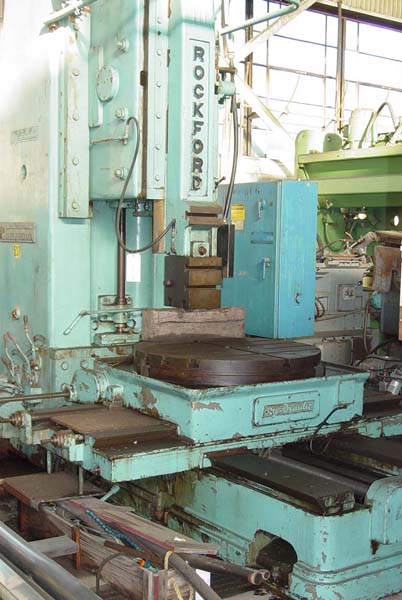

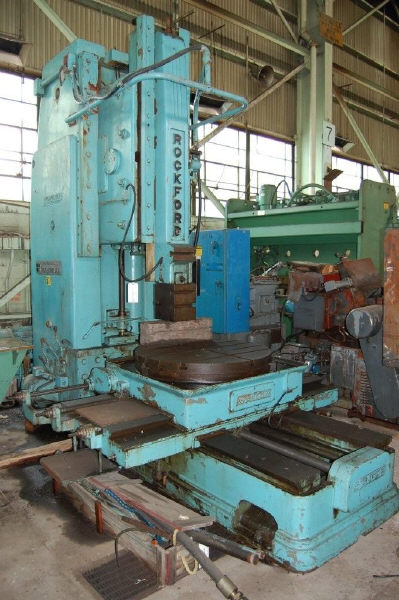

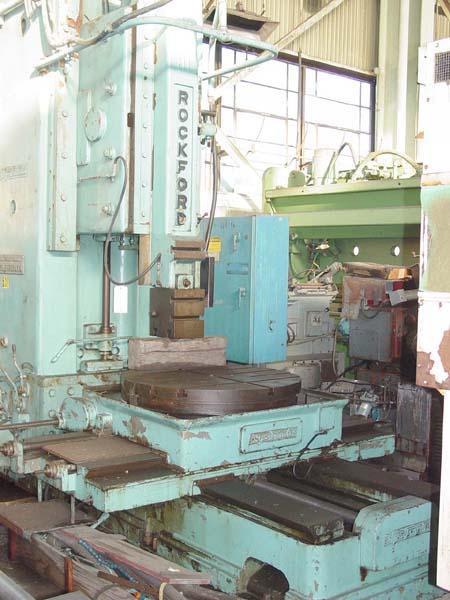

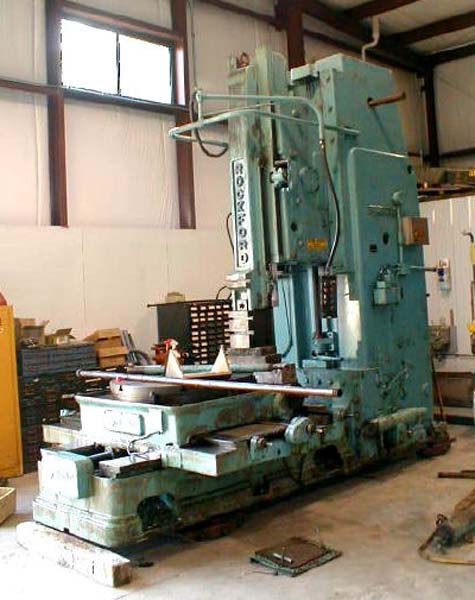

36" ROCKFORD HYDRAULIC VERTICAL SLOTTER
New 1968, Serial No. 117-SL-72, Model SL
EQUIPPED WITH:
42" Diameter Rotary Table
10 Degree Tilting Ram
Pendant Control
CATALOGUE SPECIFICATIONS:
Rotary Table Diameter.................. 42"
Stroke Length, Minimum................. 7"
Stroke Length, Maximum................. 38"
Ram Adjustment, Maximum................ 16"
Slots To Center Of Circle, Diameter.... 83"
Stroke Length, Rated................... 38"
Table To Tool Head, Minimum............ 0"
Table To Tool Head, Maximum............ 52"
Table Longitudinal Travel, Maximum..... 42"
Table Cross Travel, Maximum............ 36"
Ram Angle Adjustment, Minimum.......... 0-DEGREES
Ram Angle Adjustment, Maximum.......... 10-DEGREES
Cutting Force, Maximum................. 10000 LBS
Cutting Speed, Range................... 10 To 80 FPM
Table Long & Cross Feeds............... .002" To 0.140"
Rotary Feeds 16" Circle................ .002" To 0.140"
Main Motor, Horsepower................. 20 HP
Floor Space Required, W x D............ 8'6" x 16'5"
Overall Height......................... 15'7"
Weight, Approximately.................. 37000 LBS
