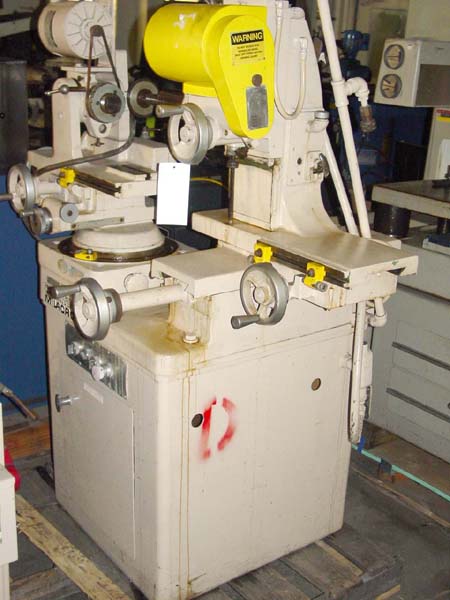

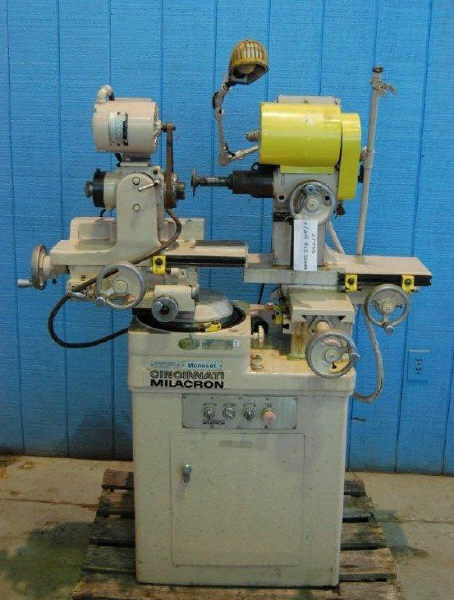

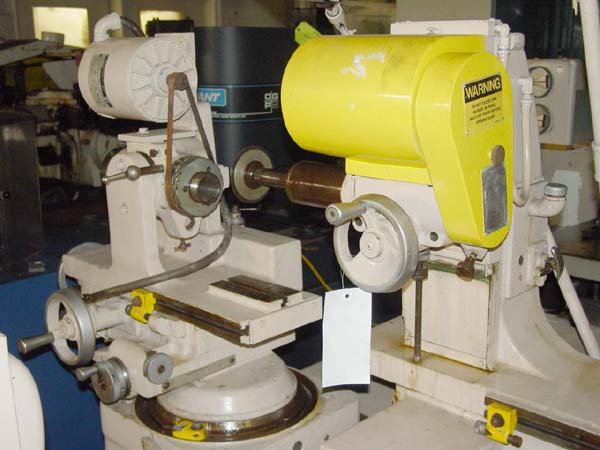

CINCINNATI-MILACRON "MONOSET" TOOL & CUTTER GRINDER
New 1978, Serial No 3152A0177-0074, Model MT,
  Series "MONOSET"

CATALOGUE SPECIFICATIONS:
Collet Work Diameter, Minimum.......... .125"
Collet Work Diameter, Maximum.......... 1.25"
Swing Over Main Slide, Maximum......... 12"
Work Length Capacity:
Between Spindle & Tailstock Center..... 6"
Workhead, Main Slide Travel............ 5.75"
Workhead, Offset Slide Travel, Total... 5.25"
Workhead Angular Adjustments:
Horizontal Plane, Turntable............ 235-DEGREES
Vertical Plane, Above Center........... 40-DEGREES
Vertical Plane, Below Center........... 40-DEGREES
Wheelhead, Longitudinal Slide Travel... 6"
Wheelhead, Cross Slide Travel.......... 7.50"
Wheelhead, Vertical Slide Travel, Total 9.50"
Wheelhead Vertical Travel Above Center. 4.25"
Wheelhead Vertical Travel Below Center. 4.50"
Grinding Wheel Diameter, Maximum....... 4"
(3) Wheelhead, Spindle Speeds, Range... 4000 to 8000 RPM
Workhead, Spindle Speed................ 436 RPM
Workhead Motor, Horsepower............. 1/4 HP
Wheelhead Motor, Horsepower............ 1/2 HP
Floor Space Required, W x D............ 25" x 26"
Weight, Approximately.................. 1525 LBS.
