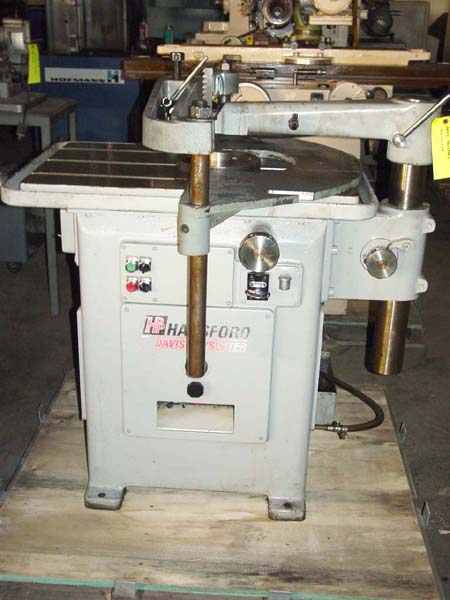

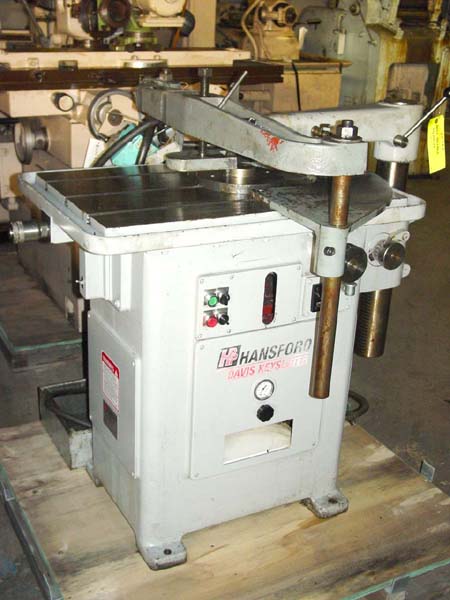

#15 DAVIS/HANSFORD AUTOMATIC MECHANICAL KEYSEATER
New 2006, Serial No 15-1586, Model 15
EQUIPPED WITH:
Swinging Clamp Bar Assembly
Automatic Feed w/Automatic Stop
Micrometer Depth Stop
One Shot Lubrication
Coolant System (Tank & Pump)
CATALOGUE SPECIFICATIONS:
Keyway Width, Minimum....................... 1/16"
Keyway Width, Maximum....................... 1.5"
Cut Length w/16" Cutter, Maximum............ 4"
Cut Length w/20" Cutter, Maximum............ 8"
Cut Length w/24" Cutter, Maximum............ 12"
Cut Length w/30" Cutter, Maximum............ 18"
Stroke Length, Maximum...................... 4.5"
Throat Distance, Cutter to Post............. 19"
Height of Work, Maximum..................... 12"
Table Dimensions (Overall) W x L............ 20" x 31"
Number of T Slots in Table.................. 3
Table Longitudinal Travel................... 1.4"
Strokes Per Minute.......................... 45 SPM
Air Pressure Required....................... 3 SCFM
Motor, Horsepower/RPM....................... 2 HP
Weight, Approximately....................... 1250 LBS
