SNK CNC BRIDGEMILL VERTICAL MACHINING CENTER
MODEL: RB2N, NEW 1994
CATALOG SPECIFICATIONS:
DISTANCE BETWEEN COLUMNS ...................... 65"
DISTANCE TABLE SURFACE TO SPINDLE END ......... 0-51.2"
TABLE SIZE .................................... 47.2" X 98.4"
TABLE TRAVEL (X-AXIS) ......................... 108"
MAXIMUM TABLE LOAD ............................ 11,000 LBS
SPINDLE SPEEDS ................................ 0-3000 RPM
SPINDLE DRIVE MOTOR ........................... 30 HP
SPINDLE HEAD TRAVEL (Y-AXIS) .................. 69"
SPINDLE QUILL TRAVEL (Z-AXIS) ................. 15.7"
CROSS RAIL ELEVATING TRAVEL ................... 35.4"
RAPID FEED (X,Y,Z) ............................ 393.7/189 IPM

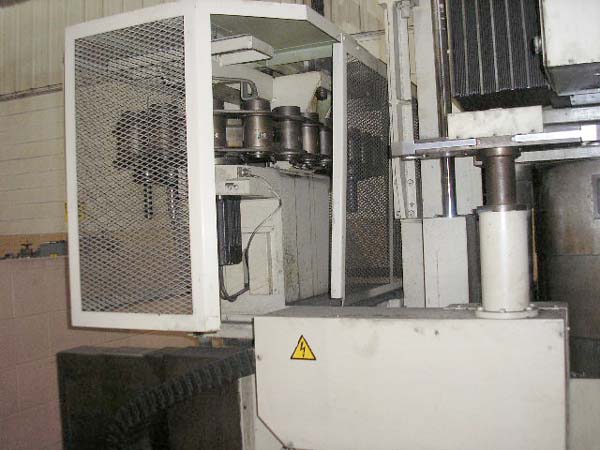

TOOL CHANGER .................................. 24 ATC
TOOL SHANK .................................... 9.1"
MAX. TOOL DIAMETER ............................ 15.7"
APPROX. WEIGHT ................................ 48,500 LBS
EQUIPPED WITH:
FANUC OMC CONTROL
COOLANT
