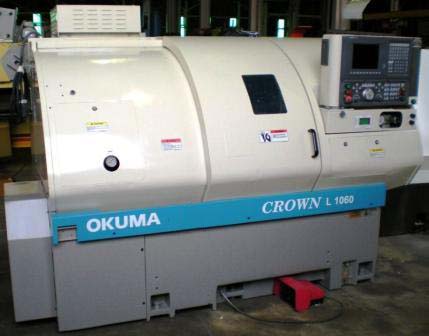

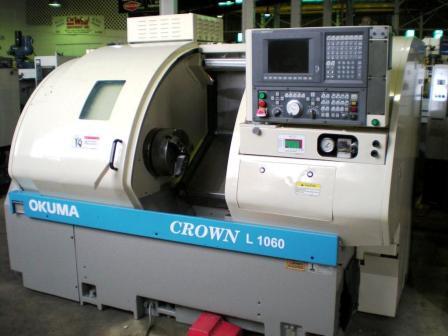

OKUMA CROWN BIG BORE CNC TURNING CENTER
MODEL: Crown 762S-BB L1060
SERIAL NUMBER: 1707 Year: 1997
EQUIPPED WITH:

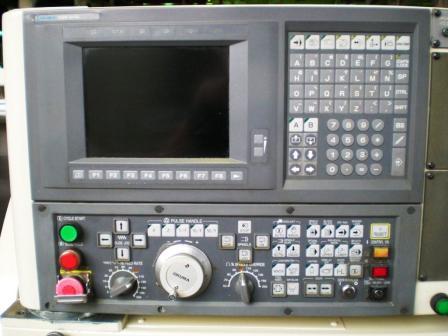

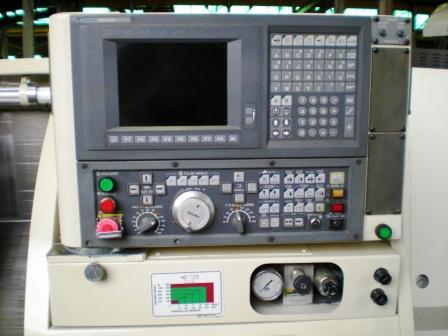

Okuma OSP-U10L Control
20 HP Main Spindle Motor
Twelve Position Turret
Tailstock
Chip Conveyor
GENERAL SPECIFICATIONS
Swing Over Bed:.................... 21.65"
Swing Over Cross Slide:.............. 15.75"
Maximum Turning Diameter:................ 10.63"
Spindle Nose:.............. A2-8
Spindle Diameter: ........................4.72"
Spindle Bore:................... 3.15"
Spindle Speeds:.............. 65 - 3500 RPM
Z-Axis Travel:................. 20.47"
Z-Axis Feed Rate:............. .00004" - 39.37" IPR
Z-Axis Rapid Feed Rate:.......... 787.4 IPM
X-Axis Travel:................. 7.28"
X-Axis Feed Rate:............ .00004" - 39.37" IPR
X-Axis Rapid Feed Rate:............. 590.55 IPM
Tailstock Quill Diameter:.......... 3.54"
Tailstock Quill Stroke: ...........4.72"
Tailstock Taper: No............... 5 MT
Turret: V12 Type,............... 12 Tools
Approximate Weight:............. 10,000 Lbs.
