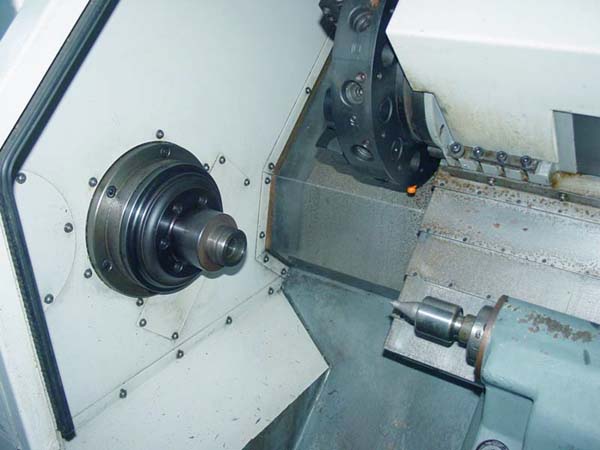

CINCINNATI MILACRON 'HAWK' CNC TURNING CENTER
Model Hawk 150, S/N 7051a00kk0474, New 2000
Stock # K13082
EQUIPPED WITH:
Acramatic 2100 PC Based CNC Control with Color CRT, Multiple Part
Program Storage, RS-232 Port, Collet Chuck, Auto Lube, Chip and
Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 15.75"
Max Swing Over Carriage................................. 10.63"
Max Tailstock Position.................................. 18.32"
Max Machinable Center Distance.......................... 17.32"
Cross Travel (X-Axis)................................... 8.45"
Longitudinal Travel (Z-Axis)............................ 17.32"
Feed Range (Infinitely Variable)........................ .1-630 IPM
Rapid Traverse Rate (X-Axis)............................ 630 IPM
Rapid Traverse Rate (Y-Axis)............................ 1000 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.42"
Spindle Nose............................................ A2-5
Spindle Speed Range (1 RPM Increments).................. 30-5500 RPM
Spindle Horsepower...................................... 10 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 58.2" x 38"
Approximate Machine Height.............................. 63.8"
Approximate Machine Weight.............................. 10,300 LBS
CONDITION: Machine Appears to be in Very Good Condition !!
