MAZAK HV-630 CNC HORIZONTAL/VERTICAL MACHINING CENTER
New 1994, S/N 108694, Stock # K13089
EQUIPPED WITH:

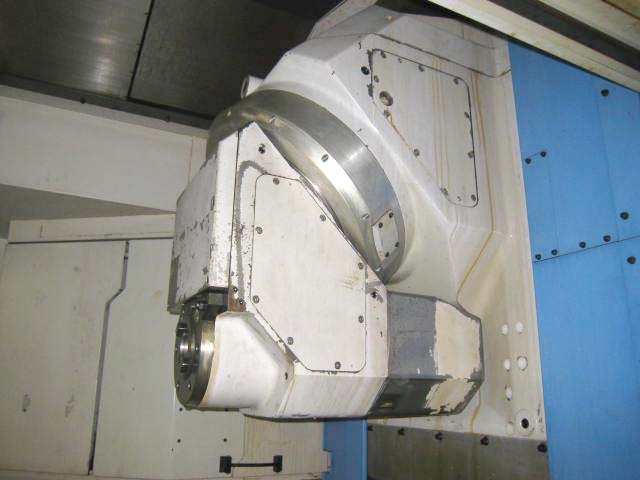

Mazatrol M-32 CNC Control with Color CRT, Spindle Tilts 90 Degrees from
Horizontal to Vertical, Automatic Pallet Changer, Two 24.8" Contouring
Pallets (360,000 Positions), 80 Station Automatic Tool Changer, Chip
Conveyor,
Thru-the-Spindle Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)................... 39.4"
Vertical Travel (Y-Axis)............................. 31.5"
Head Cross Travel (Z-Axis)........................... 41.3"
Spindle Tilt......................................... 90 Degrees
Pallet Rotation (B-Axis)............................. 360 Degrees
Pallet Dimensions.................................... 24.8" x 24.8"
Number of Pallets.................................... 2
Number of Index Positions............................ 360,000
Feed Rates (X, Y, & Z Axes).......................... .1-800 IPM
Rapid Traverse (X, Y, & Z Axes)...................... 800 IPM
Spindle Horsepower................................... 30 HP
Spindle Speed Range.................................. 35-8000 RPM
Spindle Taper........................................ #50
Number of Tool Positions............................. 80
Electrics ........................................... 460/3/60
Approximate Machine Dimensions....................... 241" x 259"
Approximate Machine Height........................... 161"
Approximate Machine Weight........................... 45,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
