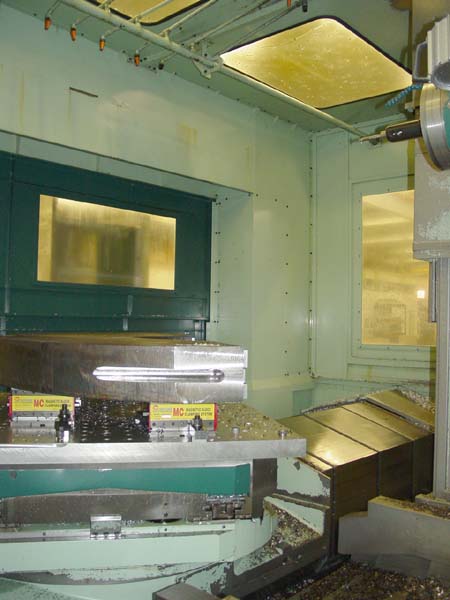

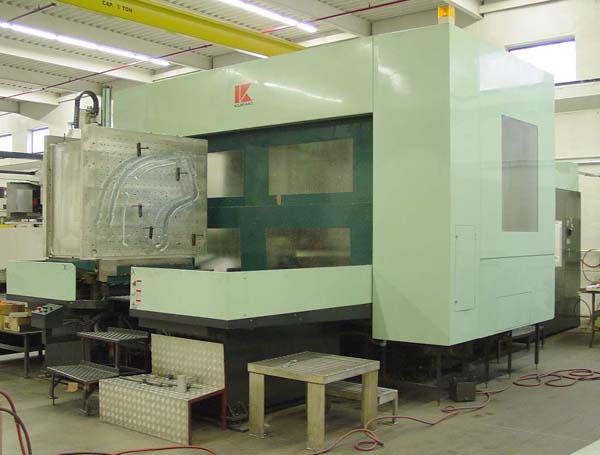

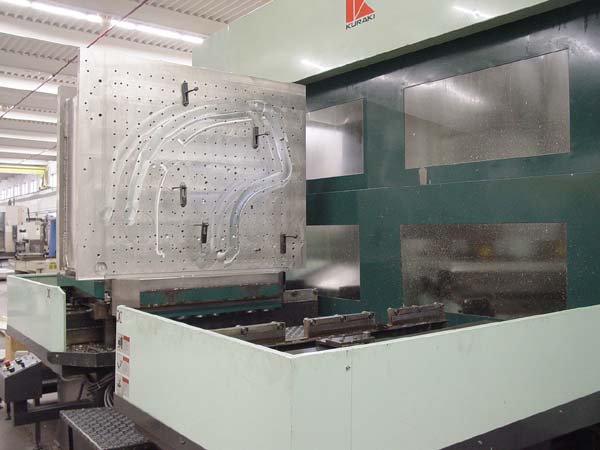

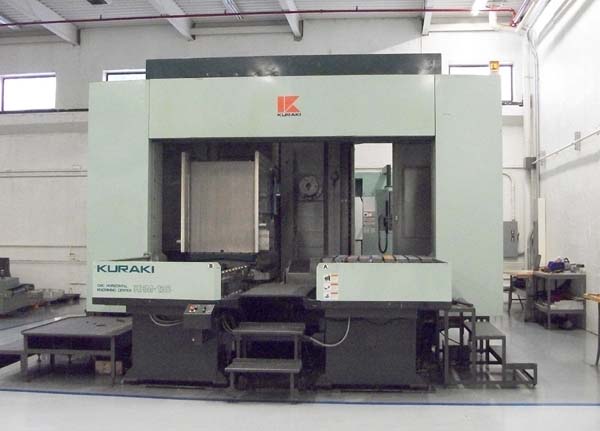

KURAKI HEAVY DUTY CNC HORIZONTAL MACHINING CENTER
                        New 2000, Stock # K13090



EQUIPPED WITH:
Fanuc 16M CNC Control, Multi-Part Program Storage, RS-232 Port, (2)
49.21" x 49.21" Pallets with Full Contouring 4th Axis Pallet Rotation,

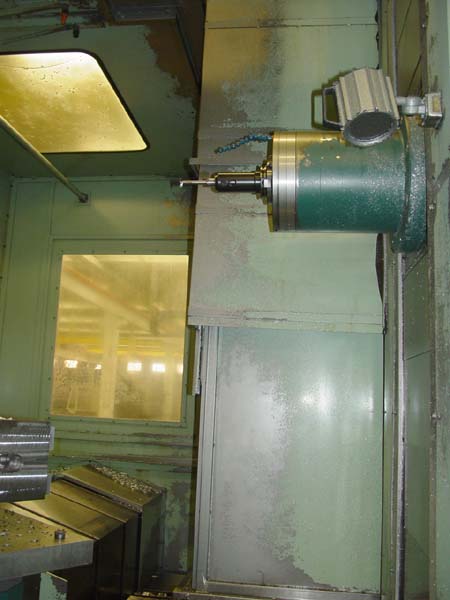

Heavy Duty 8000 RPM Cat-50 Spindle, DIN Style Thru Spindle Coolant,
Rigid Tapping, Scale Feedback for X,Y,Z Axis, 60 Station Automatic Tool
Changer, Chip Conveyor and Coolant System.



CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 78.74"
Vertical Travel (Y-Axis) ............................... 49.21"
Spindle Travel (Z-Axis) ................................ 39.37"
Pallet Dimensions ...................................... 49.2"x49.2"
Maximum Pallet Load .................................... 6600 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... 314 IPM
Rapid Traverse, All Axes ............................... 787 IPM
Spindle Horsepower...................................... 40 HP
Spindle Speed Range..................................... 50 - 8000 RPM
Spindle Taper .......................................... Cat-50
Number of Tool Stations ................................ 60
Electrics .............................................. 460/3/60
Approximate Machine Dimensions ......................... 226" x 354"
Approximate Machine Height.............................. 168"
Approximate Machine Weight.............................. 55,900 LBS



CONDITION: Machine is from a Large Well Maintained ISO9002 Shop!
            Appears to be in Excellent Condition !
