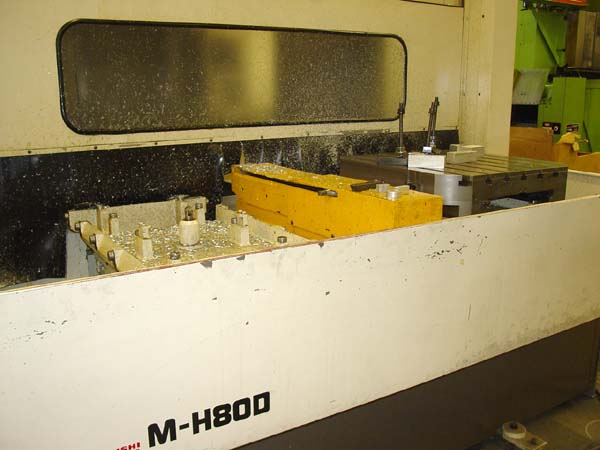

MITSUBISHI MH80D CNC
TWIN PALLET HORIZONTAL MACHINING CENTER
New - 1996
EQUIPPED WITH:

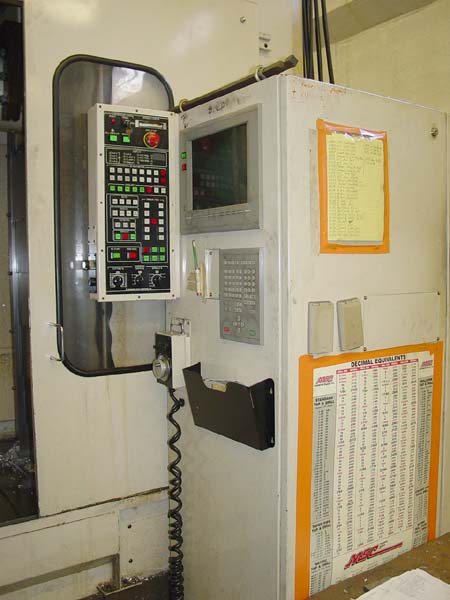

Mitsubishi Meldas 300 CNC Control with 14" Full
Graphic Color CRT. Keyboard. RS232 Port. Rigid Tapping, 2-Position

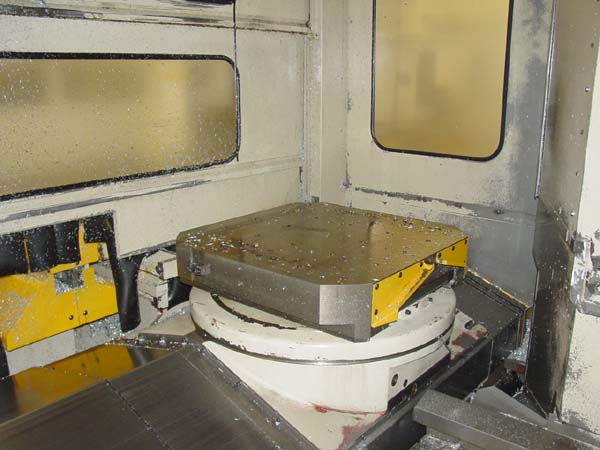

Automatic Pallet Changer. (2) 31.5" x 31.5" T-Slotted Pallets with Full
Contouring 4th Axis Pallet Rotation, 80 Position Random Access Automatic
Tool Changers. High Pressure Through Spindle Coolant. (2) Chip Augers.
Coolant Tank and Chip Conveyor. Trabon Automatic Lubrication System. Oil
Chiller. Worklights. Transformer.
SPECIFICATIONS:
Table Travel X-Axis (R-L)......49.2"
Column Travel Z-Axis (In-Out).......33.5"
Spindle Nose to Center of Pallet:Maximum.......43.3"
Minimum.........9.8"
Head Travel Y-Axis (Up-Down)..........39.4"
Spindle C/L to Top of Table: Maximum.........41.3"
Pallet Rotation........... 360 Degrees at .001 Degree Increments
Minimum...............................................................2"
Pallet Size................31.5" x 31.5"
Pallet Index .......................1?
Spindle Speeds (Variable).....................40- 6,000 RPM
Spindle Taper............................................ Cat-50
Rapid rate: X, Y ....................787 IPM
Z............................591 IPM
Cutting Feed Rate: X, Y, Z..............04 - 196 IPM
Automatic Tool Changer Capacity....................80 Tool
Maximum Load on Pallet...........................4,400 lbs
Approximate Weight........................52,000 lbs
