5” TOS- INTERCONTINENTAL CNC HORIZ. BORING MILL
NEW-1987

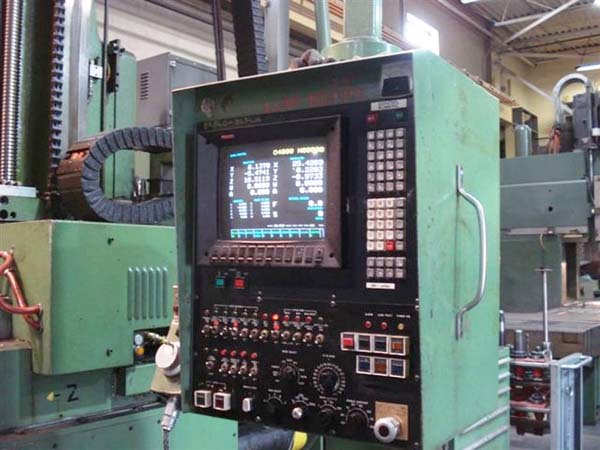

CONTROL . . . . . . . . . : FANUC 11M
SPINDLE DIAMETER . . . . . : 5"
TABLE SIZE. . . . . . . . . : 50" x 50"
CROSS TRAVEL (X). . . . . . : 50"
VERTICAL HEAD TRAVEL (Y). . : 50"
SADDLE IN/OUT (Z) . . . . . : 50"
SPINDLE TRAVEL (W). . . . . : 24"
SPINDLE SPEEDS. . . . . . . : to 3000 RPM
SPINDLE MOTOR . . . . . . . : 20 HP
SPINDLE TAPER . . . . . . . : #50
EQUIPPED WITH:
ELECTRICS-440 3/60
POWER DRAW BAR

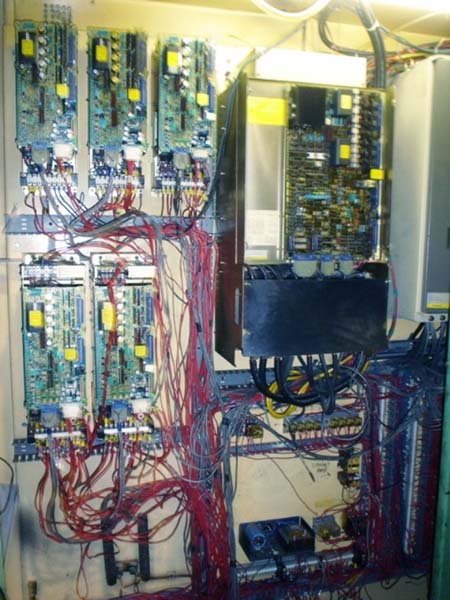

FANUC YELLOW CAP DC DRIVES
BUILT IN ROTARY TABLE
TELESCOPING STEEL WAY COVERS
HARDENED WAYS
HYDRAULIC COUNTERBALANCE
COOLANT SYSTEM
