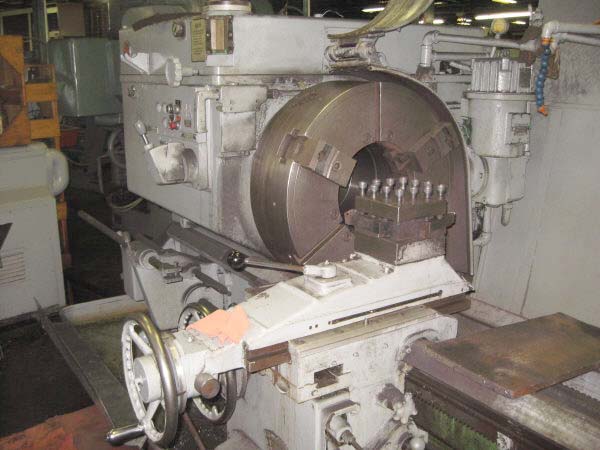

4A WARNER & SWASEY "SQUARE-HEAD" SADDLE-TYPE
TURRET LATHE W/12" HOLE & POWER CHUCK
New 1965, Serial No 2095453, Model 4A, Series M3580
Lot 15,
EQUIPPED WITH:
12" Hole Thru Spindle - "Square-Head" Machine Design
28" 3-Jaw Geared Scroll Chuck w/Power Chuck Wrench
Thread Chasing Attachment - 4-Way Tool Post - Hard
Ways
(4) Flanged Tool Holders - (2) Sliding Tool Holders
CATALOGUE SPECIFICATIONS:
Hole Thru Spindle...................... 12"
Bar Capacity, Round.................... 12"
Bar Capacity, Square................... 8.44"
Bar Capacity, Hexagon.................. 10.37"
Swing Over Bed Ways.................... 29.5"
Swing Over Carriage Guard.............. 28.25"
Swing Over Carriage Horn............... 22.44"
Turning Length, Maximum................ 59.625"
Carriage Longitudinal Travel (Z-Axis).. 67.57"
Cross-Slide Cross Travel (X-Axis)...... 17"
Turret Longitudinal Travel (Z-Axis).... 67.57"
Spindle-Face to Turret, Maximum........ 80"
(16) Spindle Speeds, Range............. 15 to 395 RPM
(16) Carriage Long Feeds (Z-Axis)...... .005 to .167 IPM
(16) Carriage Cross Feeds (X-Axis)..... .003 to .103 IPM
(16) Turret Longitudinal Feed (Z-Axis). .005 to .167 IPM
Main Motor, Horsepower................. 60 HP
Floor Space Required, L x D............ 17'10" x 7'9"
Weight, Approximately.................. 22000 LBS
