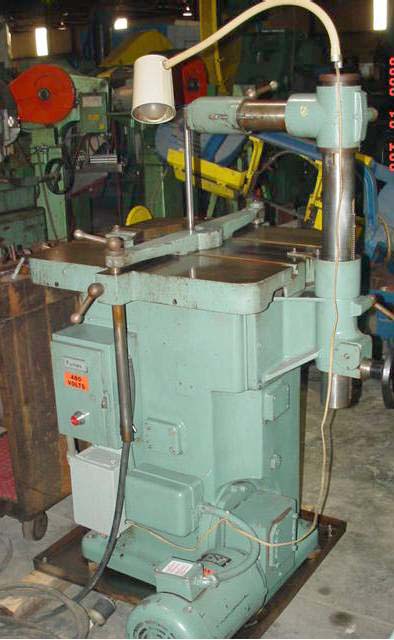

D.C. Morrison Keyseater
Year 1991
Specifications
Keyway cutting capacity in steel: 1/16" to 1-1/4"
Maximum length of keyways: 9"
Length of Strokes: 3", 4-1/2", 6", 7-1/2", 9"
Strokes: 34 SPM
Face of cutter to arm post: 16-1/4"
Maximum distance under standard clamp: 25-1/2"
Table size: 24" x 27"
Motor HP: 2 HP 220/440 volt 3 phase
Dimensions: 36" x 48" x 54"
Weight: 1,400 lbs approx.
Equipped With
Work light
One shot lube
4) Broaching bars
