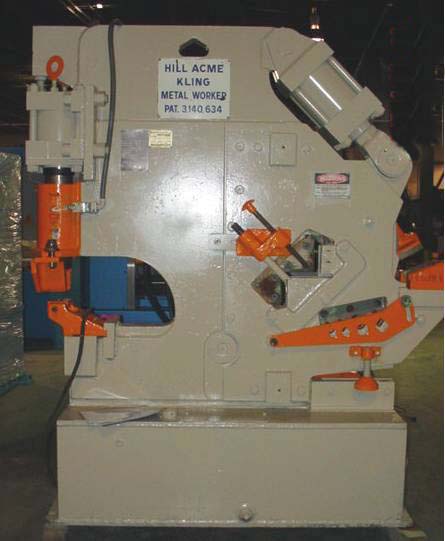

75 Ton Hill Acme Kling Hydraulic Ironworker
Model #5
Serial Number 524355
Specifications
Tonnage: 75
Max. Dia. Thru Thickness: 1-1/4" thru 11/16"
Dia. Thru Max. Thickness: 1" thru 7/8"
Depth of Throat: 20"
Max Strokes Per Min.: 40 Strokes @ 1/2" Length
Min. Strokes Per Min.: 20 Strokes @ 1-1/2" Length of Stroke
Flats/Max Thickness and Width: 1" x 4"; 3/4" x 6"; 5/8" x 10"
Blade Length: 12"
Rounds: 1-7/8"
Squares: 1-3/4"
Angles: 5" x 5" x 1/2"
Rectangular Notcher Capacity: 3" w x 4-1/4" d x 1/2" Metal
Horsepower and R.P.M.: 10 @ 1800
Oil Required: 43 Gallons
Die WOrking Height: 35-1/2"
Cubic Dimension: 39" x 72" x 82"
Net Shipping Weight: 7,600 lbs
