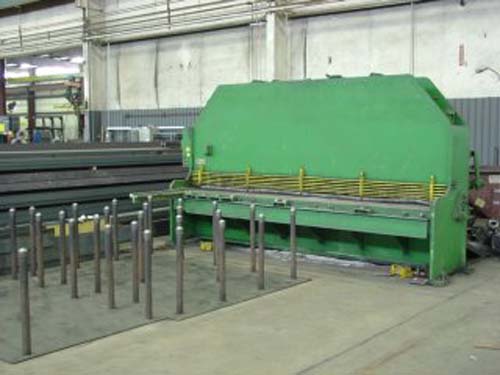

American Hercules Hydraulic Shear
Equipped With:
36" 2-Speed Front Operated Power Back Gauge with Readout (swing-up type)
59" Squaring Arm
Extra set of Blades
Electric Foot Pedal Control
Currently Wired 440 Volt 3 Phase
Specifications
Capacity: 1/2" Mild Steel
Cutting Length: 12'
Maximum Working Length: 145"
Normal Hold-Down Force: 39 Tons
Number of Hold-Downs: 11
Knife Size: 1" x 4"
Power Back Gauge Range: 1/4" - 36"
Main Motor: 40 HP 220/440/3 Phase
Weight: 25,000 lbs. approx.
Dimensions: 181" L x 66" W x 96" H
