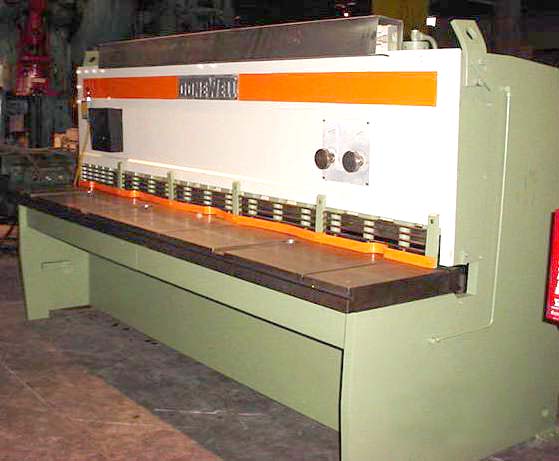

Donewell Hydraulic Power Squaring Shear
Model 6-3000
Year 1984


Equipped With:
39" Front operated powered back gauge
104" Squaring arm
94" Support arm
Powered rake angle adjustment
Quick set blade gap adjustment
Electric foot pedal control

Specifications
Max cutting capacity: 1/4" (mild steel)
Max cutting length: 122"
Rake angle: 0.5 degree to 1.7 degree
Number of hold downs: 18
Cutting speed (min.-max.): 22 - 75 SPM
Backgauge range: 39"
Motor: 15 HP
Dimensions: 125" L x 82" W x 68" H
Weight: 14,300 lbs approx.
