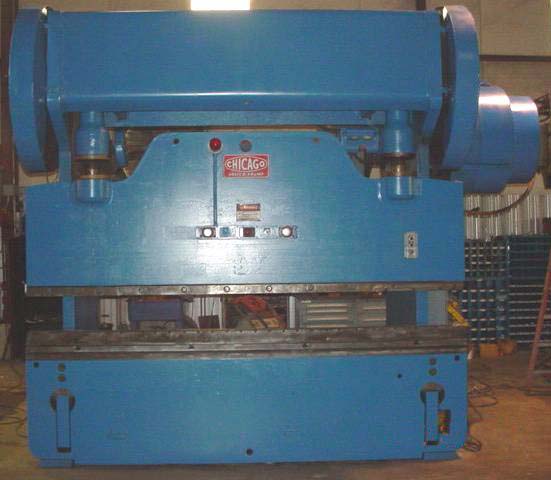

275 Ton Chicago D & K Mechanical Press Brake
Model 275D8
Serial Number P9904
Year 1979
Equipped With:
Air clutch
2 Speed operation (fast approach/working speed)
Upper die clamps
Electric foot pedal & palm button
Flush floor design
Specifications
Tonnage capacity: 275 tons
Overall length of bed and ram: 10'6"
Distance between housings: 8'6"
Stroke length: 4"
Shut height (stroke down adj. up): 12"
Ram adjustment: 6"
Throat depth: 18"
Bed width: 6 1/2"
Strokes per minute: 30 SPM
Drive motor: 15 HP
Overall dimensions (L x W x H): 13'2" x 8'2" x 10'11"
Weight: 35,000 lbs. Approx.
