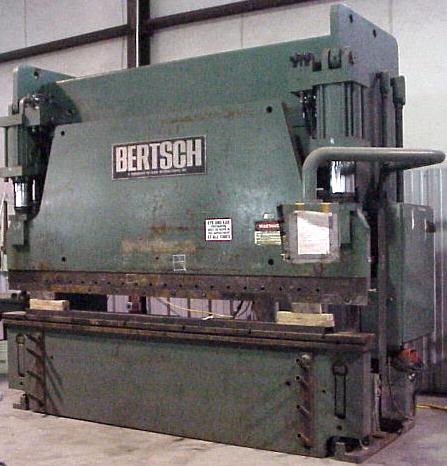

175 Ton Bertsch Hydraulic Press Brake
Model 175-12
Serial Number M-10682
Year 1983
Equipped With:
PC Ram control
Specifications
Capacity: 175 Tons
Approach ram speeds (in/min): 245/88/29
Return ram speeds (in/min): 225/52
Overall bend length: 12'
Distance between housings: 10'6"
Platen height above floor: 36"
Bed projection below floor: 0"
Stroke length: 10"
Open height: 17"
Closed height: 7"
Throat depth: 8"
Platen width: 8"
Motor: 30 hp
Approximate shipping weight: 24,500 lbs.
Overall dimensions: 150" x 53" x 130"
In plant under power @ customer's facility
