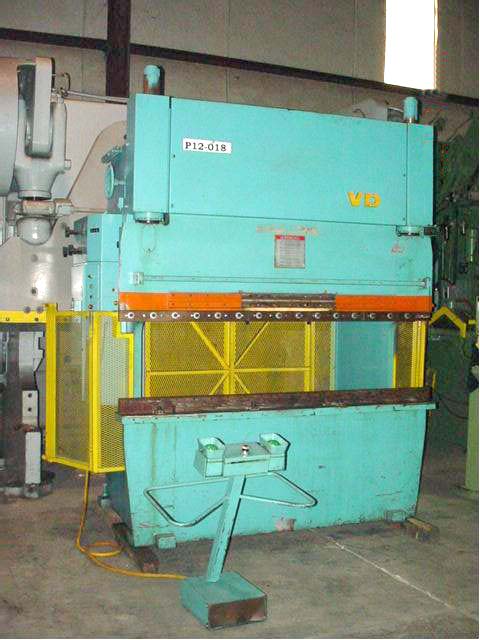

55 Ton LVD Hydraulic Press Brake
Model 55-BH-06
Year 1980
Equipped With:
Full length die holder
Upper ram clamps
Tonnage control
Foot pedal control
Positive mechanical depth stops in cylinders
3 speed operation (fast approach/working speed)
Specifications
Tonnage: 55
Overall working length:78"
Distance between housings: 5'4"
Throat depth: 8"
Stroke length: 0 - 4"
Ram adjustment: 0 - 3"
Open height: 20"
Ram speeds - Approach: 240 IPM Working: 25 IPM Return: 156 IPM
Motor: 6.6 HP
Weight: 7,500 lbs
