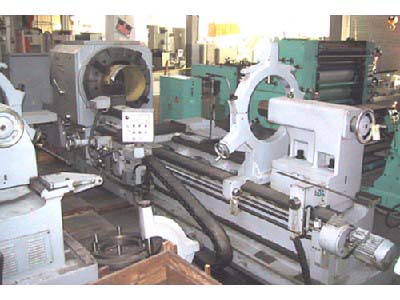

52" X 120" LANSING OIL FIELD ENGINE LATHE
                     New 2008, Model G, Stock# K13132

EQUIPPED WITH:
25" Spindle Bore, (2) 37" 4-Jaw Chucks, Hardened Steel Bed Ways,
6 Directional Power Rapid Traverse, Heavy Duty Taper Attachmanet, Power
Compound Cross-Slide, 4 Position Tool Post, Inch/Metric Threading,
Steady Rest, Full Length
Coolant/Chip Pans.


CATALOGUE SPECIFICATIONS:



Max. Swing Over Bed Ways............................ 52"
Max. Swing Over the Cross Slide..................... 40"
Max. Distance Between Centers....................... 120"
Hole Thru Spindle................................... 25"
Spindle Speeds, Range............................... 0 to 177 RPM
Longitudinal Feeds.................................. 0 to .064 IPR
Cross Feeds......................................... 0 to.053 IPR
Threading Leads, Range.............................. 1" - 120 TPR
Metric Thread Changes, Range........................ .5 - 7.5 TPI
Diametral Threads................................... 120 - 8
Module Threads...................................... .25 - 3.75
Electrics........................................... 440/3/60
Approximate Machine Dimensions ...................... 196" x 58"
Approximate Machine Height .......................... 65"
Approximate Machine Weight........................... 32,700 LBS


CONDITION: Demo Machine in Excellent Condition!
