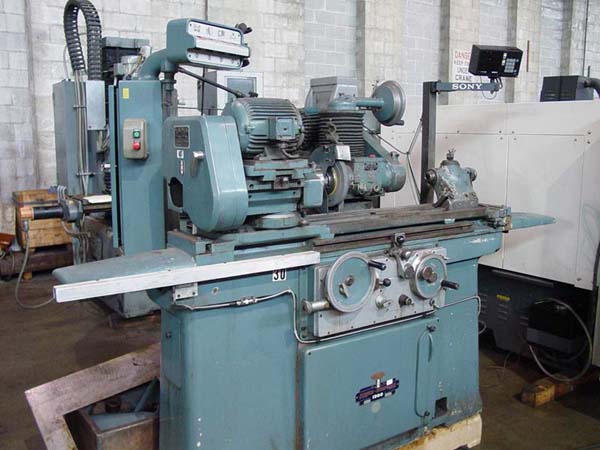

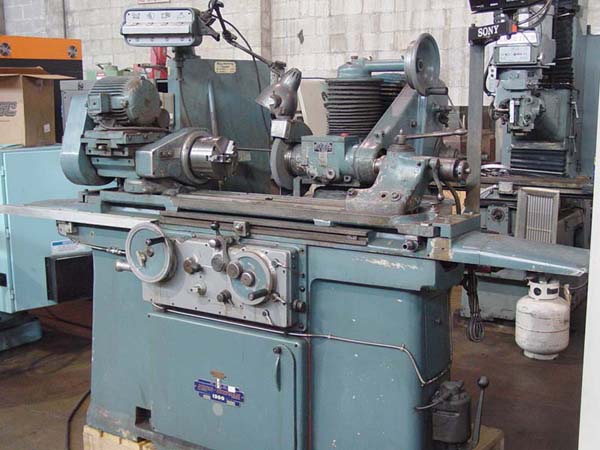

10" X 27" JONES & SHIPMAN UNIVERSAL
ID/OD CYLINDRICAL GRINDER
Model 1300, S/N 60735, New 1966
Stock# K13133
EQUIPPED WITH:

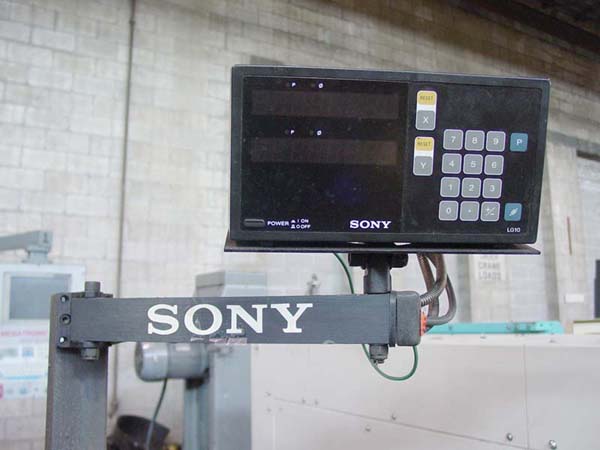

Sony 2-Axis Digital Readouts, Swing Around
Internal Grinding Spindle,
EIT Type Universal Swiveling Work Head, Universal Swiveling Wheel
Head,
Table Swivel with Indicator, Automatic Hydraulic Infeed, Plunge Feed
and
Tarry, Hydraulic Table Traverse, Infinitely Variable Table Traverse,
4"
3-Jaw Chuck, 6" 3-Jaw Chuck, 6" 4-Jaw Chuck, Coolant Tank & Pump.
CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum
............................ 10-1/4"
Max Grinding Diameter with New Wheel.................. 10"
Distance Between Centers ............................. 27"
Grinding Wheel, Standard Dia. ........................ 12"
Grinding Wheel, Standard Width ....................... 1"
Grinding Wheel, Hole Dia. ............................ 5"
Workhead Spindle Speeds (6)........................... 40 to 230 RPM
Grinding Head Speeds (2).............................. 2000 - 2650 RPM
Longitudinal Table Feeds (Hydraulic) ................. 3 to 144 FPM
Automatic Infeed on Table Reversal.................... .0002" - .0012"
Swivel of Wheelhead................................... 345 Degrees
Swivel of Workhead.................................... 360 Degrees
Table Swivel.......................................... 16 Degrees
Approximate Machine Dimensions........................ 102" x 64"
Approximate Machine Height............................ 76"H
Approximate Machine Weight............................ 6,100 lbs
CONDITION: Appears to be in Excellent
Condition !
