EQUIPPED WITH:

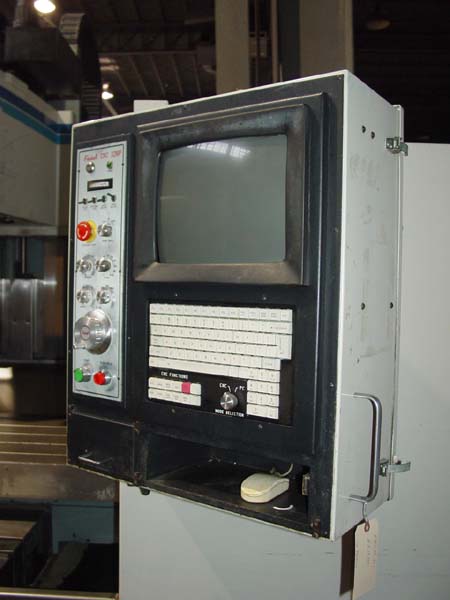

Fadal 32 CNC w/CRT, Manual Pulse Generator, Multiple Part Program
Storage, Self Dianostics, Heavy Duty Box Ways, 21 Station Automatic Tool
Changer, Axis Error Compensation, Cutter Compensation, Liquid Cooled
Spindle with Chiller, Full Enclosure, Coolant and Chip System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 62.5" x 30"
Table Load Capacity................................... 3,500 LBS
Longitudinal Travel (X-Axis).......................... 60"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 28"
Feed Rates (X & Y-Axes)............................... 0.1 to 250 IPM
Feed Rate (Z-Axis).................................... 0.1 to 250 IPM
Rapid Traverse Rate (X & Y-Axes)...................... 400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 22.5 HP
Spindle Speeds Range.................................. 40-10,000 RPM
Spindle Taper......................................... #40 Taper CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 103" x 158"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 17,500 LBS
CONDITION: Appears to be in Excellent Condition.
