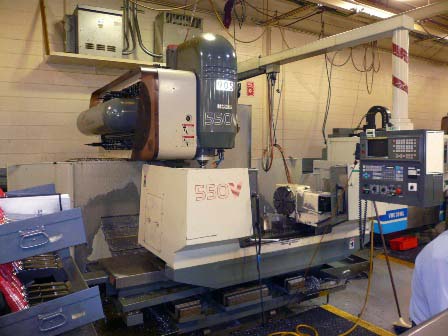

ENSHU 550V CNC VERTICAL MACHINING CENTER
New 1994, S/N 223, Stock# K13140

EQUIPPED WITH:

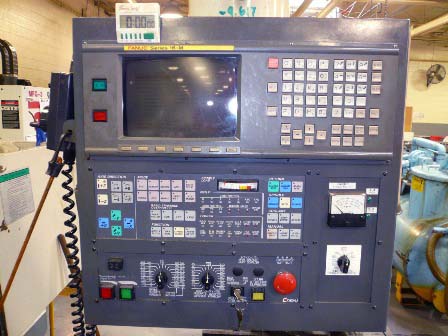

Fanuc 16M CNC, Multiple Part Program Storage, RS-232 Port, AC Spindle
and Axis Drives, Programmable Offsets, Tool Tip Graphics, Rugged CAT 50

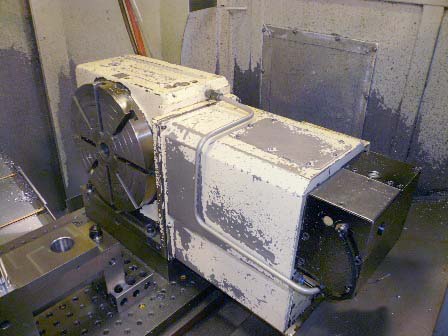

Spindle, Full Contouring 12" Tsudakoma 4-Axis Rotary Table with
Tailstock, Super Heavy Duty Box Ways, Chip Auger and Coolant System.

CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 51.2" x 21.7"
Table Load Capacity................................... 2750 LBS
Longitudinal Travel (X-Axis).......................... 41.3"
Cross Travel (Y-Axis)................................. 21.7"
Vertical Travel (Z-Axis).............................. 22"
Rapid Traverse Rate (X & Y-Axis)...................... 591 IPM
Rapid Traverse Rate (Z-Axis).......................... 473 IPM
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 20 HP
Spindle Speed Range................................... 40-6000 RPM
Spindle Taper......................................... #50 CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 102" x 100"
Approximate Machine Height............................ 108"
Approximate Machine Weight............................ 22,000 LBS

CONDITION: Machine appears to be in Excellent Condition !
