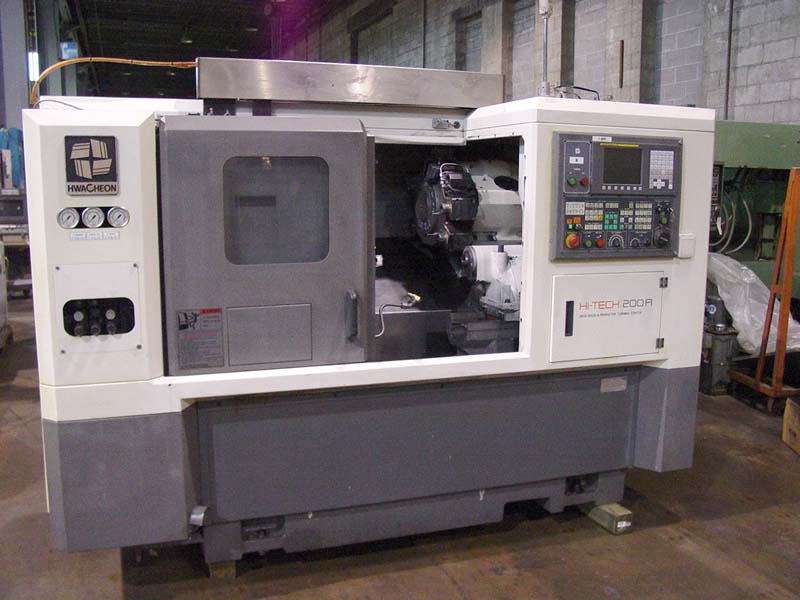

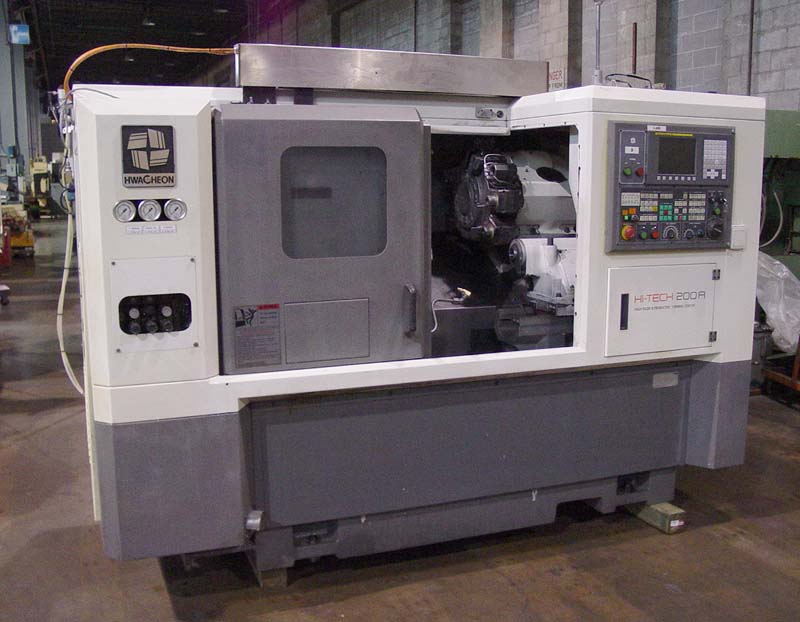

HWACHEON CNC TURNING CENTER With LIVE TOOLING
Model Hi-Tech 200A, New 2006, S/N 10354ALFP
Stock# K13144


EQUIPPED WITH:

Fanuc Oi-TC CNC Control, RS-232 Port, Multiple Part Program Storage,
Auto Chamfer, Background Edit, 8" Kitagawa 3-Jaw Hydraulic Chuck, 12
Position Turret, Live Tooling, Full Contouring C-Axis Spindle,
Tailstock with Programmable Body and with Programmable Quill, Servo
Turret, Heavy Duty Box Way Construction, Chip and Coolant System.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed ..................................... 15.7"
Max Swing Over Saddle................................... 13.8"
Max Between Centers...................................... 20"
Spindle Bore............................................ 2.95"
Chuck Size.............................................. 8"
Cross Travel (X-Axis)................................... 7.6"
Longitudinal Travel (Z-Axis)............................ 16.9"
Rapid Traverse Rate (X-Axis)............................ 1181 IPM
Rapid Traverse Rate (Z-Axis)............................ 1181 IPM
Tool Positions.......................................... 12
Spindle Nose ........................................... A2-6
Spindle Speed Range..................................... 50-5000 RPM
Spindle Drive Motor (Cont/30 Min)....................... 15/20 HP
Hydraulic Tailstock Spindle Stroke...................... 4.72"
Tail Stock Body Travel.................................. 13.7"
Hydraulic Tailstock Taper............................... #3 MT
Approximate Machine Dimensions.......................... 67" x 95"
Approximate Machine Height.............................. 70"
Approximate Machine Weight.............................. 8,500 LBS

CONDITION: Ran Aluminum Only ! Appears to be in Excellent Condition !
