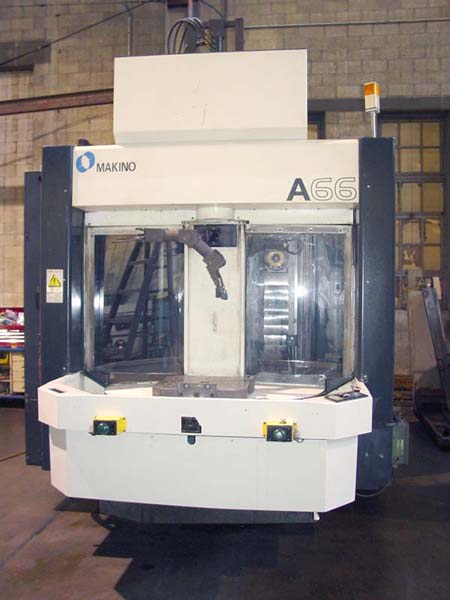

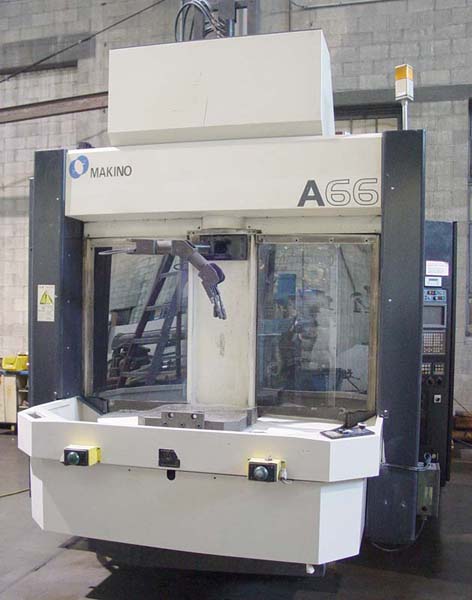

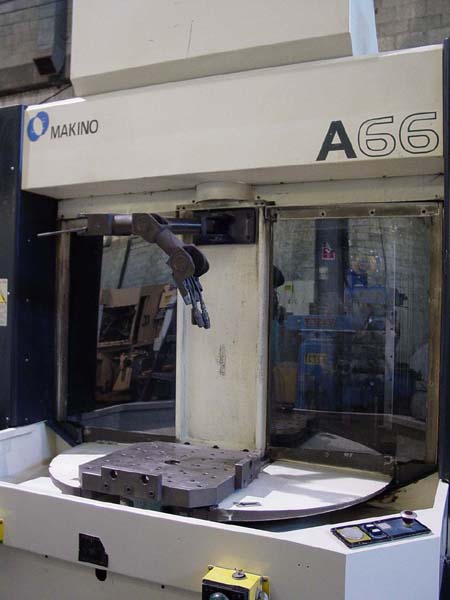

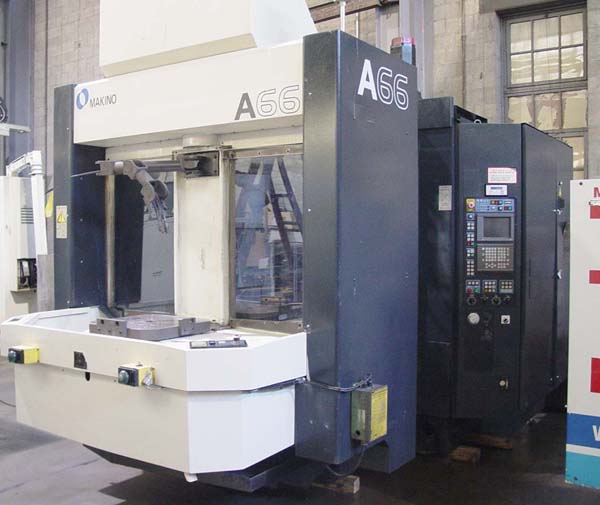

MAKINO A66 HIGH SPEED CNC HORIZONTAL MACHINING CENTER
New 1999, Stock # K13149c


EQUIPPED WITH:

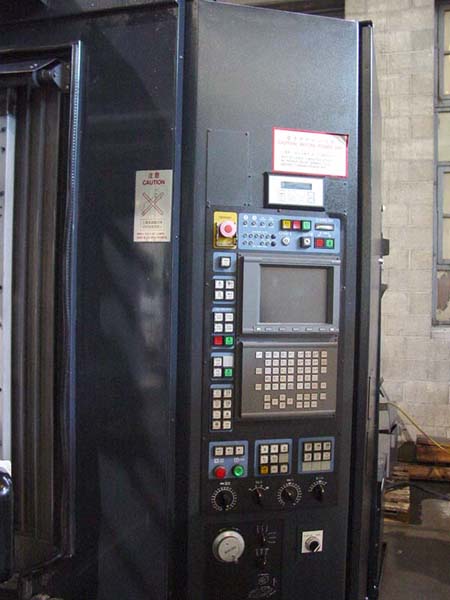

Fanuc Professional 3 CNC Control w/Color CRT (Fanuc 16iM), Multi-Part
Program Storage, (2) 19.7" x 19.7" Pallets with Full Contouring Pallet Rotation,

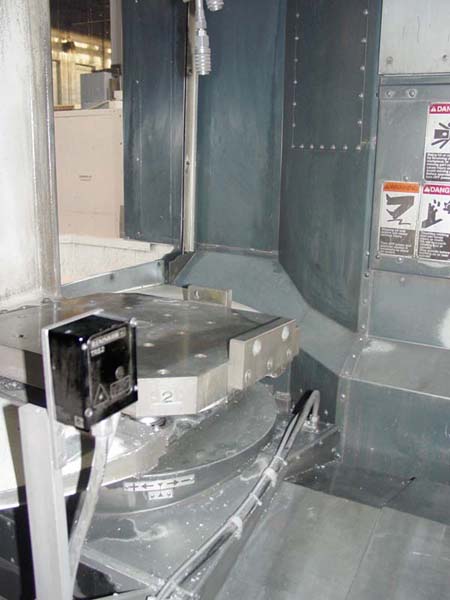

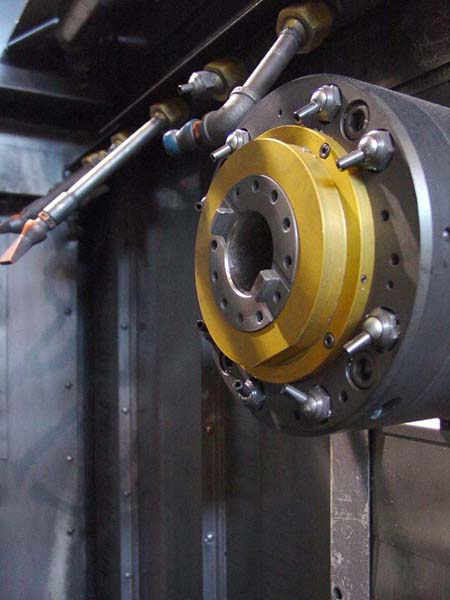

Heavy Duty 14,000 RPM Cat-40 Spindle, Tool Life Monitor,  Spindle Load Monitor, Renishaw TRS2 Tool
Setting Probe, Spindle Chiller, Rigid Tapping, 40 Station Automatic Tool
Changer, Chip Conveyor, Thru Spindle Coolant.


CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 31.49"
Vertical Travel (Y-Axis) ............................... 27.55"
Spindle Travel (Z-Axis) ................................ 25.19"
Pallet Dimensions ...................................... 19.7"x19.7"
Maximum Pallet Load .................................... 1100 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... 1575 IPM
Rapid Traverse, All Axes ............................... 1575 IPM
Spindle Horsepower...................................... 25 HP
Spindle Speed Range..................................... 50 - 14000 RPM
Spindle Taper .......................................... Cat-40
Number of Tool Stations ................................ 40
Electrics .............................................. 460/3/60
Approximate Machine Dimensions ......................... 159" x 108"
Approximate Machine Height.............................. 116"
Approximate Machine Weight.............................. 21,900 LBS


CONDITION: Machine is from a Large Well Maintained ISO9002 Shop!
Appears to be in Excellent Condition !
