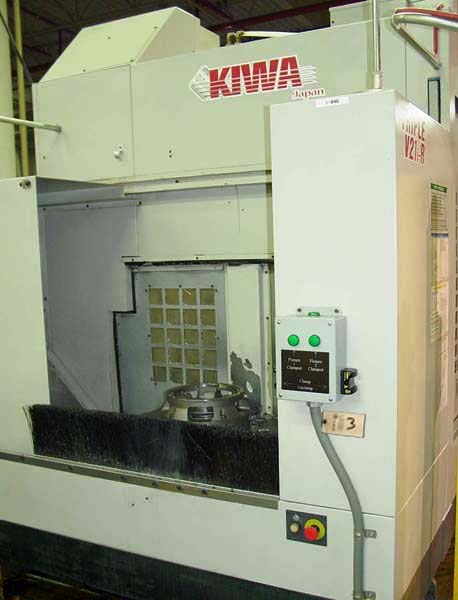

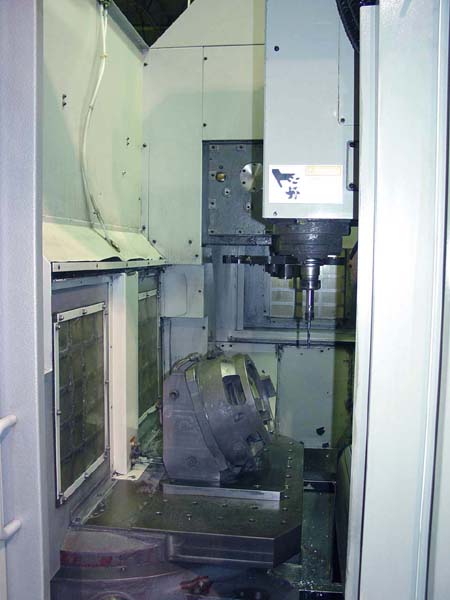

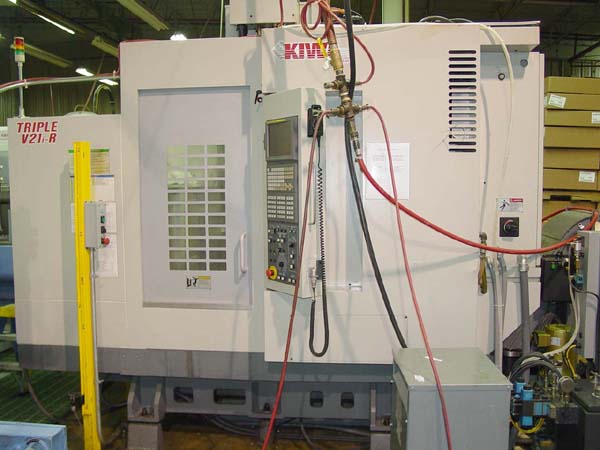

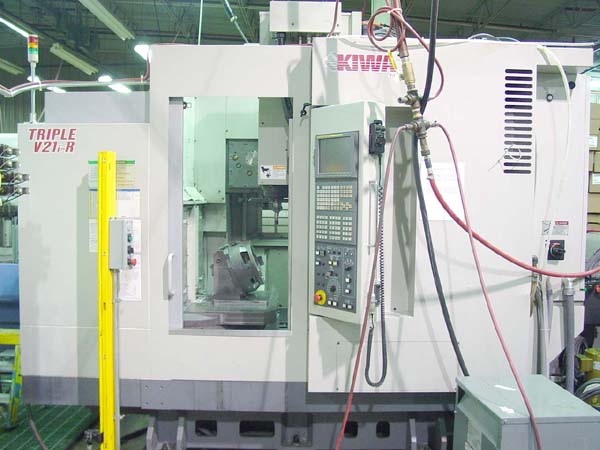

KIWA JAPAN TRIPLE V21i 2-PALLET CNC VERTICAL MACHINING CENTER
Model TRIPLE V21i, S/N KB31102, New 2006
Stock # K13151

EQUIPPED WITH:
Fanuc 18i-MB CNC Control, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, High Speed Rotary Style Pallet System, 24 Station
Automatic Tool Changer, Thru-Spindle Coolant, Rigid Tapping, Heavy Duty
Traveling Column Design, High Speed 2360 IPM Rapids, Axis Error
Compensation, Full Enclosure, Super Fast 4.7 Second Pallet Change
and 1.3 Sec Tool Changes, Coolant System and Chip Conveyor.

CATALOGUE SPECIFICATIONS:
Pallet Size........................................... 32.3" x 17.7"
Table Load Capacity................................... 1,320 LBS
Longitudinal Travel (X-Axis).......................... 24"
Cross Travel (Y-Axis)................................. 16.1"
Vertical Travel (Z-Axis).............................. 20.1"
Spindle Nose to Table................................. 5.9" - 26"
Rapid Traverse Rate (X,Y & Z-Axes).................... 2360 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower.................................... 15 HP
Spindle Speeds Range.................................. 20- 12,000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 92" x 126"
Approximate Machine Height............................ 103"
Approximate Machine Weight............................ 15,000 LBS

CONDITION: From a Large ISO 9002 Shop. Cut Aluminum Only. Appears to be
in Excellent Condition !
