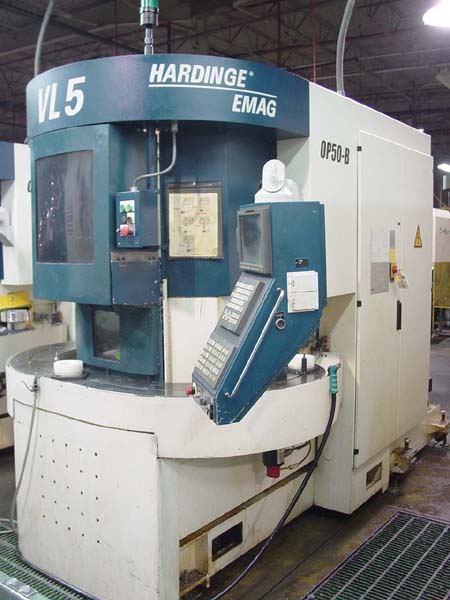

HARDINGE / EMAG VL-5 INVERTED SPINDLE VERTICAL TURNING CENTER
Model VL-5, New 2001, Stock# K13152


EQUIPPED WITH:
Fanuc 21i CNC Control w/CRT, Pick-up Style Automatic Part Loading and
Unloading Systems, 12 Position Turret, Concept 2000 Chip Conveyor and
Coolant System.


CATALOGUE SPECIFICATIONS:
Max Number of Stations (Part Pallets)................ 12
Part to Part (Load/Unload Time)......................... 4.5-6.5 Sec
Maximum Turning Diameter................................ 10.3"
Maximum Turning Length.................................. 4.7"
X-Axis Travel........................................... 22.4"
Z Axis Travel........................................... 7.87"
Rapid Traverse X-Axis................................... 2362 IPM
Rapid Traverse Z-Axis................................... 1181 IPM
Spindle Nose............................................ A2-6
Spindle Speeds.......................................... 50 - 4500 RPM
Spindle Motor........................................... 36 HP
Approximate Machine Dimensions.......................... 106" x 78"
Approximate Machine Height.............................. 95"
Approximate Machine Weight.............................. 15,500 LBS


Condition: Ran Aluminum Only. Appears To Be in Excellent Condition!
