EQUIPPED WITH:

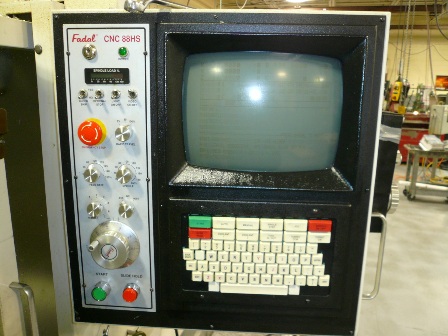

Fadal 88HS CNC Control, Remote Manual Pulse Generator,422K Multiple
Part Program Storage, Self Dianostics, Heavy Duty Box Ways, Graphics,
Rigid Tap, 21 Station Automatic Tool Changer, Glass Scales on XY and

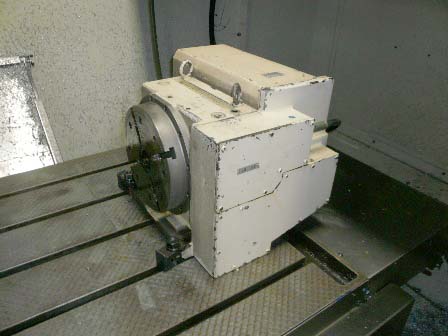

Z Axis, 12" Tsudakoma RNCV201RB Rotary Table with Tailstock, Axis Error
Compensation, Cutter Compensation, Liquid Cooled Spindle with
Chiller, Full Enclosure, Coolant and Chip System.
CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 62.5" x 30"
Table Load Capacity................................... 3,500 LBS
Longitudinal Travel (X-Axis).......................... 60"
Cross Travel (Y-Axis)................................. 30"
Vertical Travel (Z-Axis).............................. 28"
Feed Rates (X & Y-Axes)............................... 0.1 to 250 IPM
Feed Rate (Z-Axis).................................... 0.1 to 250 IPM
Rapid Traverse Rate (X & Y-Axes)...................... 400 IPM
Rapid Traverse Rate (Z-Axis).......................... 400 IPM
Tool Storage Capacity................................. 21
Spindle Horsepower.................................... 22.5 HP
Spindle Speeds Range.................................. 40-10,000 RPM
Spindle Taper......................................... #40 Taper CAT
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 103" x 158"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 17,500 LBS
CONDITION: Appears to be in Excellent Condition.
