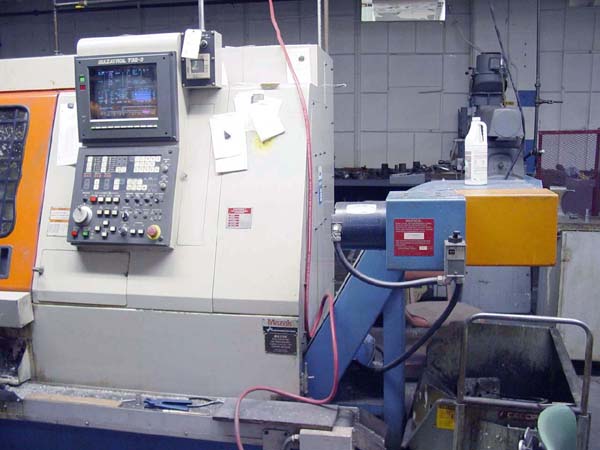

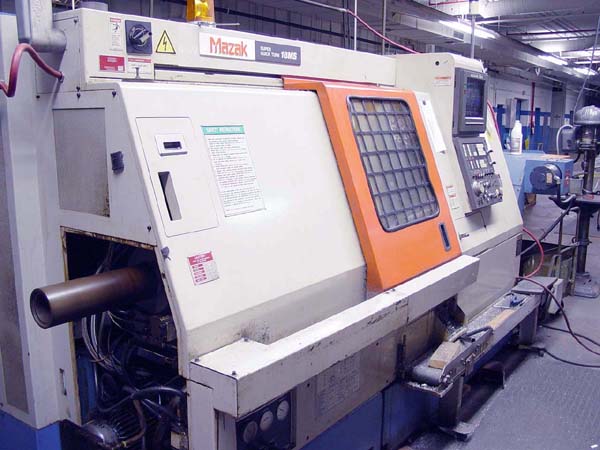

MAZAK CNC TURNING CENTER With LIVE
TOOLING and SUB-SPINDLE
Model Super Quick Turn (SQT-18MS), New 1992
Stock# K11455
EQUIPPED WITH:

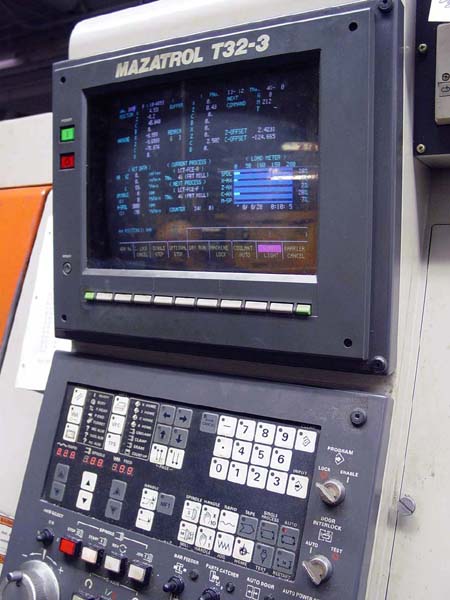

Mazatrol T-32-3 CNC Control with Color CRT, Full Edit & Program
Capability, Mazatrol Conversational Shop Floor Programming, Extended

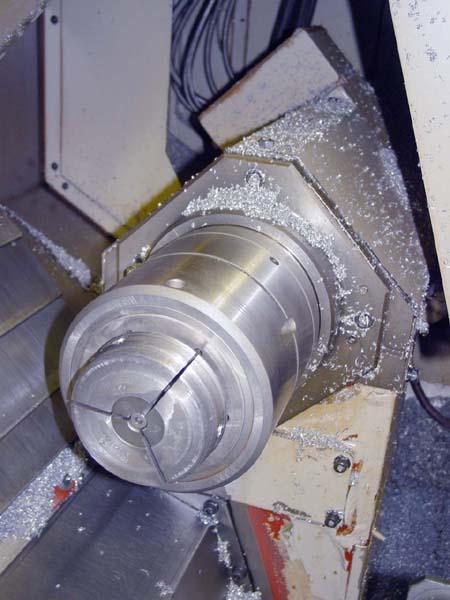

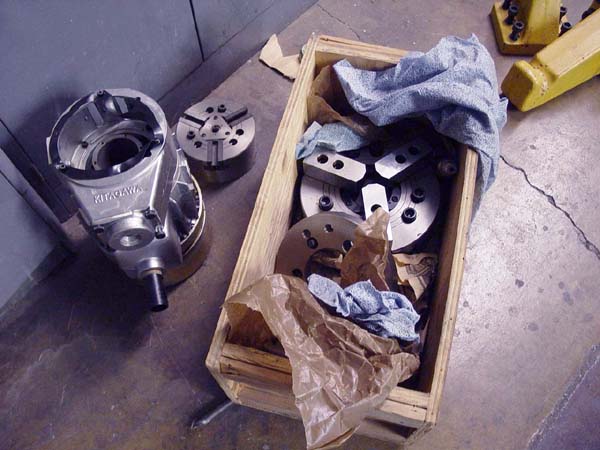

Memory, Graphics, 10" 3-Jaw Power Chuck Main Spindle, 6" 3-Jaw Power
Chuck Sub-Spindle, C-Axis Spindle, Live Tooling, Sub Spindle, Tool

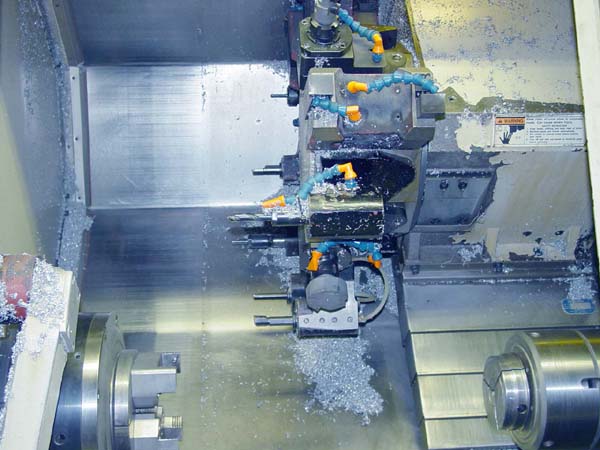

Probe, (12) Position Tool Turret with (6) Driven `Live' Tool Positions

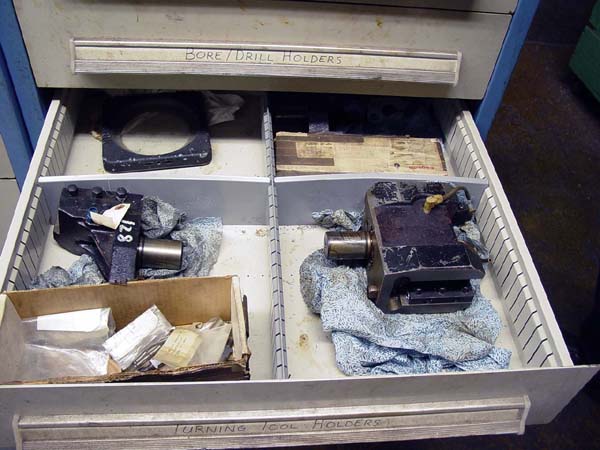

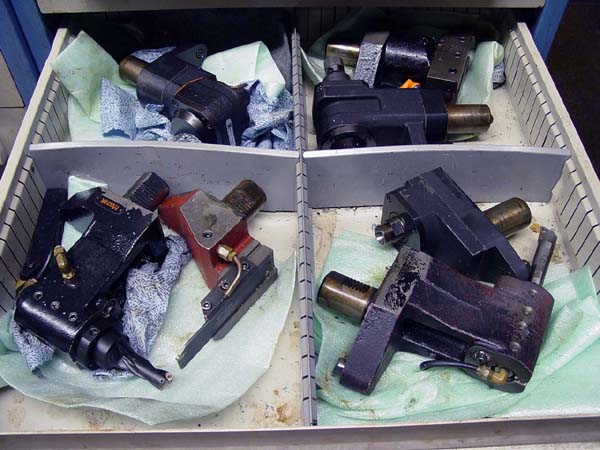

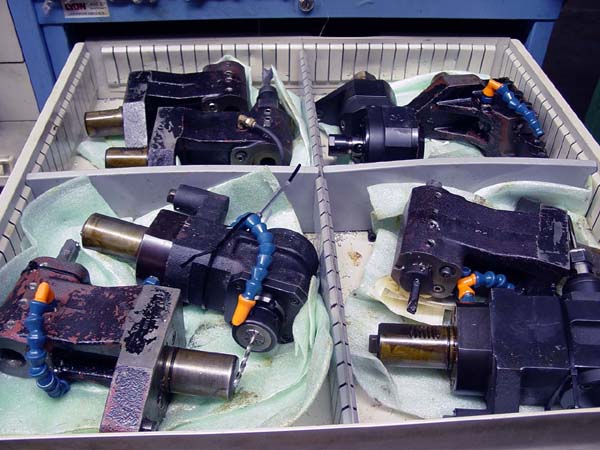

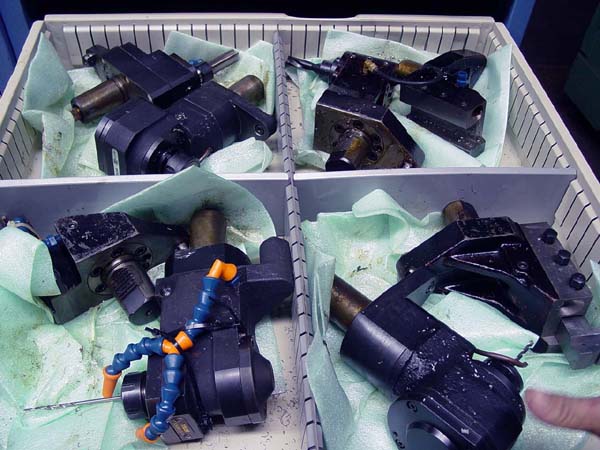

for Milling/Drilling and Tapping, Coolant System, Large Tooling package
with Turning and Driven Tools.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 20.90"
Max Swing Over Carriage................................. 11.75"
Max Machinable Center Distance.......................... 20.47
Standard Chuck Size..................................... 10"
Cross Travel (X-Axis)................................... 7.125"
Longitudinal Travel (Z-Axis)............................ 22.75"
Sub-Spindle Travel (B-Axis)............................. 23.25"
Rapid Traverse Rate (X-Axis)............................ 1180 IPM
Rapid Traverse Rate (Z-Axis)............................ 1180 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 2.51"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 35-4000 RPM
Spindle Horsepower...................................... 25 HP
Electrics............................................... 230/460/3/60
Approximate Machine Dimensions.......................... 127" x 68"
Approximate Machine Height.............................. 81"
Approximate Machine Weight.............................. 11,135 LBS
CONDITION: Under Power in Original Owners Plant. Low Hours. Appears to
be in Excellent Condition !
