OKUMA CAPTAIN "Big Bore" L-470
CNC TURNING CENTER
Model L470-650BB, S/N 121881, New 2006
Stock# K13175
EQUIPPED WITH:

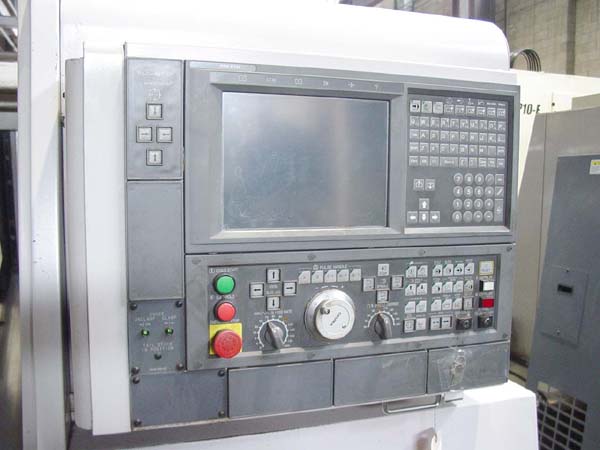

Okuma P100 CNC Control w/CRT, Big Bore Spindle
Bore Option, Tool Life
Management, Touch Setter, Spindle Orientation, Circular Interpolation,
Bed Mounted Programmable Tailstock, Auto Backlash Compensation, Coolant
System, and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 24.4"
Maximum Turning Diameter................................ 16.53"
Maximum Turning Length.................................. 25.59"
Chuck Size.............................................. 15"
Cross Travel (X-Axis)................................... 11.81"
Longitudinal Travel (Z-Axis)............................ 26.56"
Feed Range (Infinitely Variable)........................ .1-400 IPM
Rapid Traverse Rate (X-Axis)............................ 787 IPM
Rapid Traverse Rate (Y-Axis)............................ 984 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Spindle Bore............................................ 4.33"
Spindle Nose............................................ A2-11
Spindle Speed Range (1 RPM Increments).................. 28-3000 RPM
Spindle Horsepower...................................... 30 HP
Approximate Machine Dimensions.......................... 108" x 75"
Approximate Machine Height.............................. 79"
Approximate Machine Weight.............................. 11,800 LBS
CONDITION: Appears to be in Excellent Condition. Low Hours.
